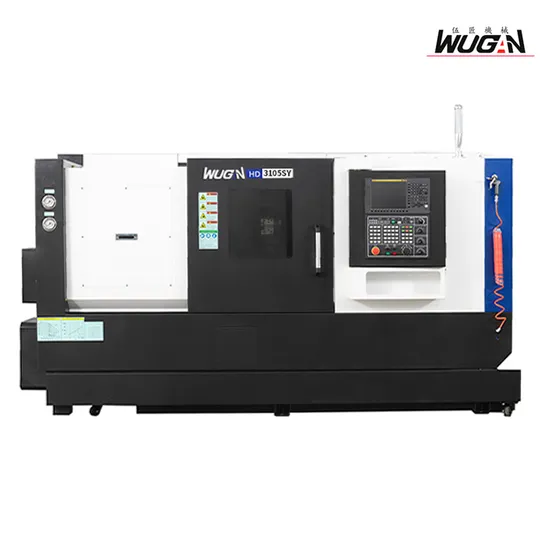

HD3105sy-45 Innovative CNC Vertical Lathe, Slant Bed CNC Lathe, 5 Axis CNC System

Product Description

Product Description
-Built with box guideways, engineered for superior heavy-duty cutting performance
-Featuring a 30-degree slanted one-piece bed structure, ensuring unparalleled rigidity and stability
-Incorporates a stabilized unit structure designed to significantly minimize thermal displacement
-Integrated processing capabilities achieved through synchronized control of both Main and Sub spindles (SY Type)
--Enables multi-tasking operations with a state-of-the-art wedge type Y-axis BMT turret
Delivers an exceptional rapid traverse rate of 30m/min along the Z-axis
-Ergonomically designed for effortless access to both the chuck and the tool, enhancing user convenience
Product Parameters

ITEM			unit	HD3105SY
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	660
	Bar Capacity	Main	mm	74
		Sub	mm	42
SPINDLE	Chuck Size	Main	inch	10′′
		Sub	inch	6′′
	Spindle Bore	Main	mm	74
		Sub	mm	42
	Spindle Speed	Main	r/min
		Sub	r/min	4,500
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	15.5/13.2
	Torque(Max/Cont.)	Main	N·M	470/286
		Sub	N·M	127/74
	Spindle Type	Main	-	BELT
		Sub	-	BUILT-IN
	Spindle Nose	Main	-	A2-8
		Sub	mm	A2-5
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	215/110{±55)
		Z/ZB	mm	730/730
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30/24
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	32
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	2.7
	Torque(Max/Cont.)		N·M	46
	Collet Size		mm	∅16{ER25}
	Type		-	BMT55P
TAILSTOCK	Taper		-	-
	Quill Dia.		mm	-
	Quill Travel		mm	-
	Travel		mm	-
TANK CAPACITY	Coolant Tank		ℓ(gal)	180
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	40
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	3,284x1,817
	Height		mm	1,950
	Weight		kg(lb)	6,500
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
An advanced structural analysis was applied to the machine design, enhancing the tool post body and reducing the machine's height. This innovation helps to maintain the bed's dynamic rigidity even during intense heavy-duty cutting.
Additionally, the HD-SY Series bed slope is pitched at an optimal 30 degrees to ensure exceptionally stable machining.
Integrated Coolant Tank
The design includes a front-installed coolant tank at the bed for enhanced convenience. This allows for efficient chip removal from the right side of the machine.
Box Guideway
All axes of the HD-SY Series are equipped with Box guideways to enhance travel capability. These guideways excel in offsetting vibrations typically caused by heavy-duty cutting.
Sealed GIB Structure
The X-axis of the HD Series features a sealed GIB structure to minimize damage to the turcite from chips, ensuring long-term durability.
Rapid Traverse Rate (X/Y/Z/ZB)
HD 3605Y/SY 24/10/30/24 m/min
Travel (X/Y/Z/ZB)
HD 3605Y/SY 265/120/1350/1350 mm
Mill Turret
The BMT turret secures tools with four bolts and a key on the turret's mounting surface, ensuring powerful tool fixation and delivering high reliability in rigidity and precision.
Mill Tool Holder
Machining capabilities have been significantly enhanced with the introduction of a straight milling head tool holder for side machining and an angular milling head tool holder for performing I.D. operations.
BMT 65P (HD3605Y/SY)
Speed (rpm): 4000 r/min
Collet Size: ø20 (ER32)
Indexing Time: 0.2 sec/step
Suzhou Wugan Intelligent Equipment Co., Ltd. specializes in crafting high-performance CNC lathes and turning centers. Our products are designed based on the latest international lathe technology, marrying high rigidity, precision, productivity, and an exquisite appearance. We provide our customers with efficient and reliable cutting performance. To meet higher customer demands, we offer high-performance mill-turn combined models capable of turning, milling, and drilling within the same machine. These multifunctional lathes substantially increase output capacity and easily address diverse processing needs of different customers.

---
