Hydraulic Wire Saw Stone Cutting Machine for Construction

US$14,900.00
1 Piece
US$13,800.00
2-4 Pieces
US$9,900.00
5+ Pieces

Basic Info.

Model NO.
YG
Type
Hydraulic Cutting Machine
Usage
Ceramics, Cement Brick, Concrete Curb, Granite, Marble
Application
Construction, Mineral Industry, Stone Industry
Source Voltage
220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Working Height
1350mm
Height
900mm
Main Flywheel Diameter
330mm
Maximum Speed
3000rpm
Rotation Range
360°
Cutting Speed
30m/S
Max. Power
25kw
Motor Cooling Method
Air Cooling
Rated Voltage
380V 50Hz
Max. Operating Pressure
200bar/28MPa
Oil Flow Rate
30-80L/Min
Dimension
600*650*1050mm
Weight
295kg
Diamond Wire Dia.
11.5mm
Quantity
50m/PC
Transport Package
LCL
Specification
170kg
Trademark
YG
Origin
Henan
HS Code
8461500090
Production Capacity
1000 Sets/Year

Product Description

Product Description

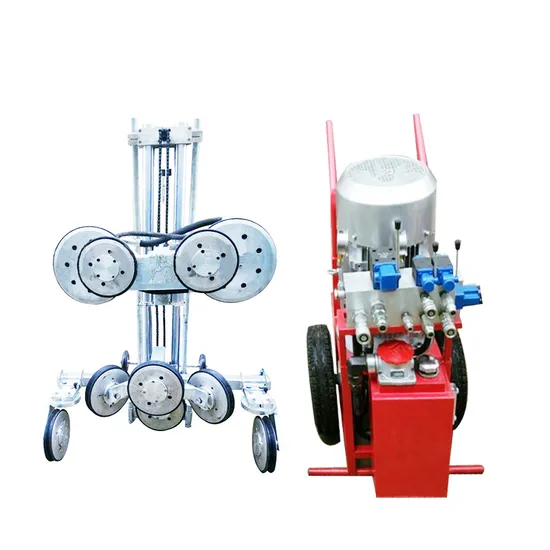

wire saw machine manufacturerSQ-90AM wire saw machine in combination with the hydraulic power unit 700TM,600TM, or 800TM, is designed to cut and remove super thick and heavy reinforced concrete and irregular concrete such as bridge cap beam, box beam, and support beam, pier, foundation, underwater concrete, etc.
Product/User Benefits:
l Faster, safer, and simpler wire saws
l Extremely large wire storage and long travel to give the greatest possible application and use
l Dual drive motor, automatic tension rope
l Maximum size of unit up to 12 m
l Fine feed for application control using an innovative damping system
l Wire saw for direct assembly
l Patented drive roll system
Product Parameters
SQ-90AM wire saw system
max. wire storage m 12
total travel mm 1500
width mm 1050
depth mm 700
height mm 2100/1650
length of protective cover mm 1650 /1100
drive wheel mm 280
storage wheel mm 200
Total weight kg 110(easy to disassemble and assemble)
hydraulic power unit 600TM 25 kW, 380V,50HZ, 200 bar, 30-80/min, 180kg
hydraulic power unit 700TM 30 kW, 380V-480V,50/60Hz,210bar,40-100 l/min, 120kg
