Product Description
Product Description

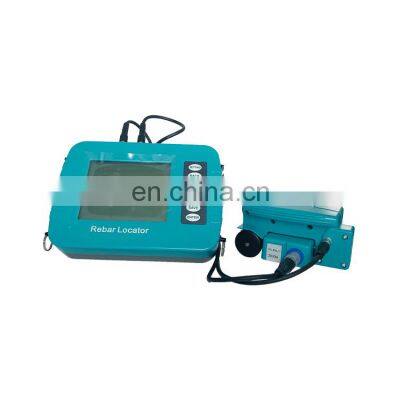

Product Usage and Features GTJ-RBL+ Concrete Cover Meter Rebar DetectorPRODUCT OVERVIEW:The Concrete Cover Meter Rebar Detector is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars from the concrete surface, detect the thickness of the concrete and the diameter of the steel bars; ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.PRODUCT FEATURES:1.Upgraded wireless cloud transmission function.2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof.3.Built-in large capacity memory card, storage capacity upgrade.4.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.5.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth.6. Manual calibration.7.Professional data analysis software, so that your post-processing data and report generation work can be easily completed.Technical ParametersModelGTJ-RBLGTJ-RBL+Setting Scope of rebar dia.φ6mm~φ50mmφ6mm~φ50mmSetting scope of concrete cover6~200mm6~200mmFirst range6mm~90mm6mm~90mmSecond range6mm~200mm6mm~200mmMax. allowable errors of the Protective Layer Thickness1-80mm (±1mm)1-80mm (±1mm)81~119mm (±2mm)81~119mm (±2mm)121~200mm (±4mm)121~200mm (±4mm)Estimation Scope of rebar dia.φ6mm~φ32mmφ6mm~φ32mmSection gridNot supportGraphics+Digital displayMax. errors of Diameter indication ±1 specification±1 specificationStorage capacity2000 Components *1000 Measuring points2000 Components *1000 Measuring pointsData transmission modeUSB; Wireless cloud transmission (potional)USB; Wireless cloud transmission (potional)Power suppyLithium battery over 12 hoursLithium battery over 12 hoursHost parametersWaterproof parameters:IP65 Screen size:5 inches Resolving:320*240 Volume:195*140*45mm Weight:0.8kgWaterproof parameters:IP65 Screen size:5 inches Resolving:320*240 Volume:195*140*45mm Weight:0.8kgWorking environmentTemperature: -10℃ ~ +40℃ Humidity： 90%RHTemperature: -10℃ ~ +40℃ Humidity： 90%RHDetailed ImagesFunctions:1. measure the diameter of the rebars on the concrete surface;2. measures the thickness of concrete cover over steel reinforcement bars and metal pipes;3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.Company IntroductionCangzhou Lovely Group Co.,Ltd. It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Welcome to visit us for better business cooperation!Packing & DeliveryAfter Sales ServiceFAQQ1:Are you a factory or trading company?A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.Q2:Where is the nearest loading port?A:Qingdao port or Tianjin port.Q3:What’s the MOQ of the product? A: One set.Q4:Did your factory pass the ISO 9001? A: YES.Q5:How long is the production cycle after ordering?A:Based on the order. Generally it is about 3-10 days.Q6:What is the payment method?A:T/T payment, West Union, L/C payment ect.Q7: Do you support customizing service?A: Yes, we could customize the out package, machine's color, Logo and Voltage as request. With more than 12 years' production experience. We would give you an excellent experience!
>>
