Hualong Machinery Manufacturer Fast Cutting Block Saw Rock Slicing High Efficiency Multi-Blade Stone Cutting Machine for Sale

Product Description

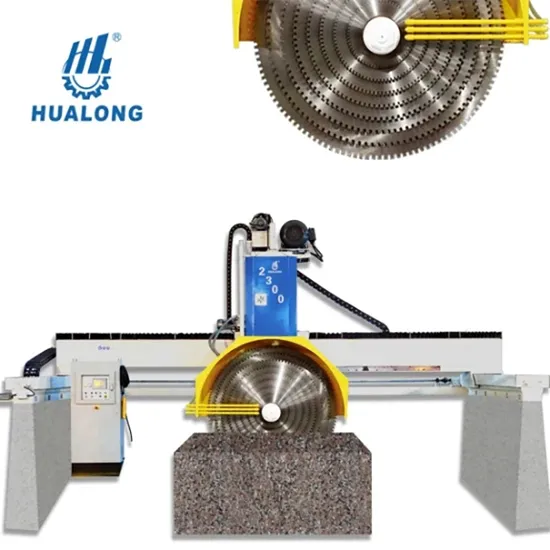

Product Application HLQY-2300 Multi blade Stone Cutting Machine is a classic and practical bridge saws for cutting block into slabs, thin or thick which adopts Siemens PLC control system, Hiwin linear guide with oil bath. Up to 18 pieces of thin saw blades can be mounted. It's popular in China and aboard for its high efficiency, good stability and long life service.

TECHNICAL DATA
Model		HLQY-1600	HLQY-2500	HLQY-3000
Max. blade diameter	mm	Φ1600	Φ2300	Φ3000
Cross beam type			A / B	A / B
Cross beam length	mm	6000	7600 / 8300	8300 / 9300
Cutting length	mm	3500	3500	3500
Cutting wideth	mm	2000	2000	2000
Lifting stroke	mm	800	1350	1350
Power of main motor	kw	55 (4P)	55 (4P)	55 (6P)
Power of pump motor	kw	4	4	4
Power of stroke motor	kw	2.2	2.2	2.2
Power of vertical motor	kw	1.1	1.1	1.1
Gross power	kw	62.3	62.3	62.3
Gross weight	kg	10000	13000/14000	14000/15500
Dimensiona(L x W x H)	mm	6500x5000x4000	7800x5000x4500	7800x5000x4500

Main Features
1) Siemens smart PLC control system makeshigh automation performance and easy.
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
Detailed Images

Machine Parts
Name: 6 big strong pilllars
Use: sliding guide for spindle
Covered by fabric for preventing pollution.
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.
Machine Parts
Name: Circle Blade
Original: China
Up to 18 pieces of blade can be hanged for efficient production of thin slabs.
Machine Parts Siemens Electronic Control System
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
