XCMG Official Gtbz30s 30m Straight Boom Lift Used Work Platform Aerial Work Platform Hot Sale

Product Description

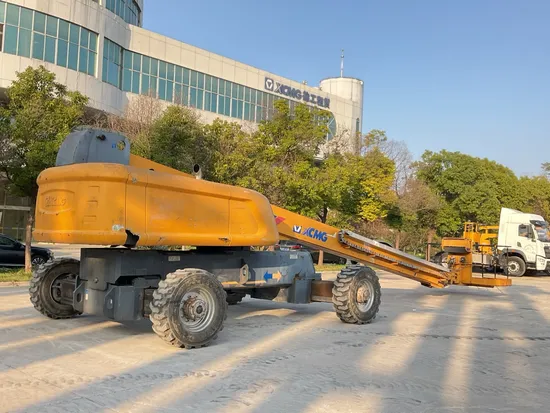

XCMG Official GTBZ30S 30m Straight Boom Lift Used Work Platform Aerial Work Platform Hot Sale It is a straight boom aerial work platform with the widest scope of application at the elevation of 30 meters. It is featured by the widest scope of application among the products operating under the same elevation to enhance the ability of operation; the strongest capacity of loading within the industry to satisfy the user's demands on heavy load; and the excellent capacity of climbing drive to adapt itself to all kinds of complicated road conditions. The machine may be widely used for building operations, bridge & equipment maintenance, shipbuilding, petrochemical engineering and other related industries.The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions. The maximum capacity of loading, i.e. 480kg, ranks the first within the industry, thus satisfying the user's demands on heavy load. The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.

Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
[Product Parameter]

Item Unit Parameter Overall Length mm 13380 Overall Width (shaft retracts/stretches) mm 2490/3800 Overall Height mm 3070 Wheel Base mm 3800 Maximum Working Height m 32.2 Maximum Platform Height m 30.5 Maximum Working Range m 23.1 Maximum Load Capacity kg 480 Boom Luffing Range ° -11~+75 Rotation Angle of Rotating Platform ° 360° Maximum Tail Wagging(shaft retracts/stretches) mm 2085/1430 Platform Size mm 2400×900 Rotation Angle of Platform ° 180 Total Weight kg 18300 Maximum Travel Speed km/h 5 Minimum Ground Clearance mm 260 Maximum Grade Ability % 45

[Product Picture]
[Company Information]
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
