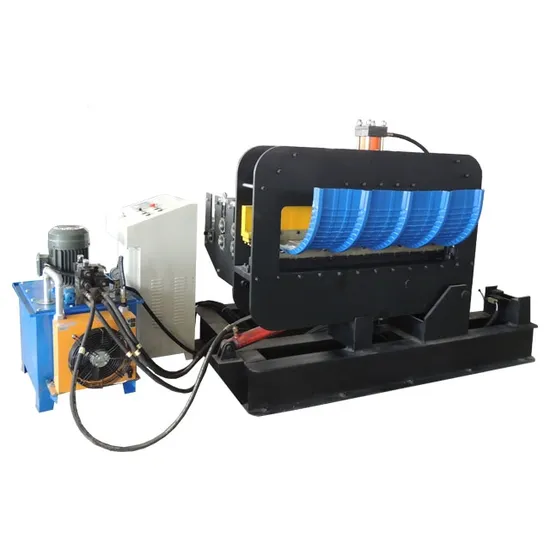

Truss-Less Arch Roof Building Machine Arch Roof Building Metal Curving Roofing Machine

Product Description

Product Description
(1) Suitable material: Color steel, galvanized steel
(2) Thickness of the plate: 0.3-10.8mm
(3) Input width of the plate: 1250/1000mm
(4)Width of the plate after forming: 1000/800mm
(5) Productivity: 8-10m/min
(6) Roller steps: 16rows
(7) Roller material: 45# steel Rolling chromium thickness: 0.05 mm
(8) Diameter of active shaft: 80mm
(9) Wall thickness of the main forming machine: 16mm steel plate
(10)Main forming machine body: 300mmH steel
(11) Transmission chain is1''
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump, the motor power is 4kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure: 8500mm*1600mm*1200mm
(15) Customerized Product Parameters

suitable material	color steel, galvanized steel
thickness of the palte	0.13-0.80mm
input width of the plate	1250/1000mm
width of the plate after forming	1000/800
prouctivity	8-10m/min
roller steps	16rows
roll material	45# steel
made board	16mm steel plate
main forming machine body	300H STEEL
transmission chain	1"

Detailed Photos
Packaging & Shipping

---
