HY-R07 Transformer inductor medium torque CNC single axis winding machine

Product Details

Product Description

Product Description
CNC single axis winding machine

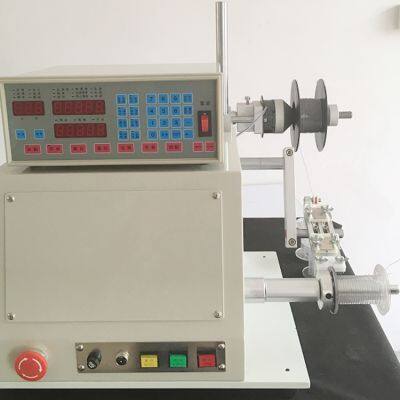

HY-R07 Transformer inductor medium torque CNC single axis winding machine
For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.
Manufacturers supply semi-automatic ishaped inductance winding machine

Applicable diameter	0.3-1.5 mm
Maximum revolutions	2000 rpm
Number of spools	1
Spindle motor	Brushless DC 600W plus drive
Winding width	0-110 mm
Cable Motor	Stepper Motor
Maximum winding diameter	250 mm
Machine power supply	AC220V/50HZ
Machine Size (mm)	L520 * W450 * H480
Machine weight	50kg

---
