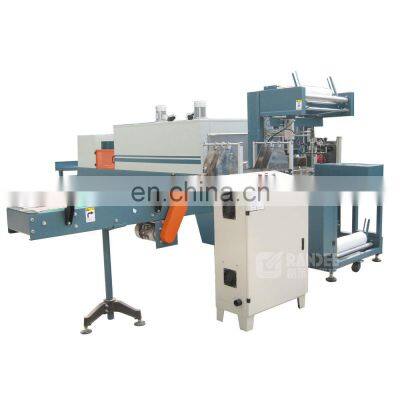

Automatic wrapping machine / shrink wrapper
Product Description
Machine description and features:
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.
Main machine:
Feeding bottle conveyor belt
Cutting part
Photoelectric detecting bottles
Shrink tunnel
Heating tubes as spare parts
Electrical control cabinet
Packaged bottles
Main technical parameter:

Name	Automatic PE film heat shrink packing machine
Model	GD-150A
Maximum packing size	420*300*350mm(LxWxH)
Max. sealing size	650mm
Level of the conveyor	950 ± 30mm
Material of shrink film	PE
Maximum shrinkage temperature	160-260℃
Maximum production speed	8-12 packs / min
Working pressure	0.6-0.8Mpa
Power (rated/real)	26kw / 16kw
Weight	1500KG
External Dimension	L5050*3300*2100mm
Dimension of main machine	L1220*W1000*2250mm
Dimension of shrink tunnel	L3900*W1000*2100mm

Related products
Company information
Workshop detail
Our exhibition
Project cases
FAQ
Q1: How to find suitable shrink wrapping machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

---
