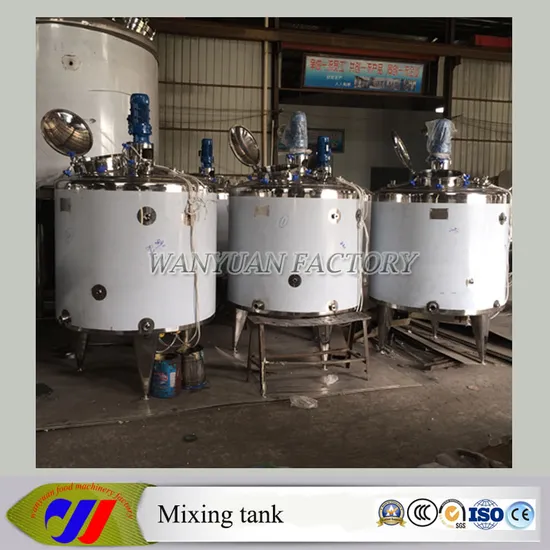

1200 Liters Carbonate Drinks Heated Mixing Tank Mixing Vessel

Product Description

1200 Liters Carbonate drinks Heated Mixing tank Mixing vessel
Our mixing tank can be customized according to your requirements, so please tell me what you need and your thinks.
1. heating, Cooling, mixing and heat preservation
2. Mixing speed can be fixed or variable or VFD
3. Conical bottom or slope bottom
4. Material: SS304/SS316
Mixing tank description:
Out tank is a kind of stainless steel mixing tank with function of heating, cooling and mixing, as well as heat preservation. We also call it hot and cold tank, or you can call it stainless steel blending tanks.
How does this Mixing tank work
Mixing tanks usually heated by steam or hot water. There is a jacket between the inne layer and out layer of the cooling and heating tank. This jacket can be dimple jacket or gap jacket. Hot water runs in the cooling and heating tanks jacket from bottpm, and being drainaged out from the top of the jacket. The mixer for the cooling and heating tank is used to accelerate cooling and heating speed.
Cooling and heating tank construction material
3 layers cooling and heating tank Ni 8/SS304, Ni 10/SS316
Capacity: 50L-10000L
Hot sell cooling and heating tank:
500L, 1000L, 1500L, 2000L and 5000L
Mixing tank Application Range
Mixing tanks are used as liquid storage tank, liquid composing tank,
Temporary storage tank and disinfection tank etc.
Cooling and heating tank applied in fields, such as foods, dairy products, fruit juice beverage, phramacy, Chemical industry and biological engineering etc.
Configuration of cooling and heating tank
1 Quick open manhole
2 Various styles of CIP cleaners
3 Fly and insert resistant sanitary breathing cover.
4 Adjustable triangular bracket
5 Dismountable materials input pipe assembly
6 Thermometer
7 Ladder
8 Jacket
9 Liquid level meter and level controller
10 Eddy-proof board
It can be customized according to special requirements of customer.
1200L electric heating mixing tank:
Characteristic:
1. Three layers,
2. Electric heating, you can find yellow font, it is electric heating tubular.
3. top with manhole
Here below is the specification of cooling and heating tank

cooling and heating tank with scraper agitator or with paddle mixer

Effective Volumn(L)	Dimension of Tank(mm*mm)	Total Height (mm)	Diamension of inlet&outlet (mm)	Heat preservation layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60

---
