Soft Forming Edge Banding Machine L Shape for Cabinet and Closets

Product Description

Product Parameters

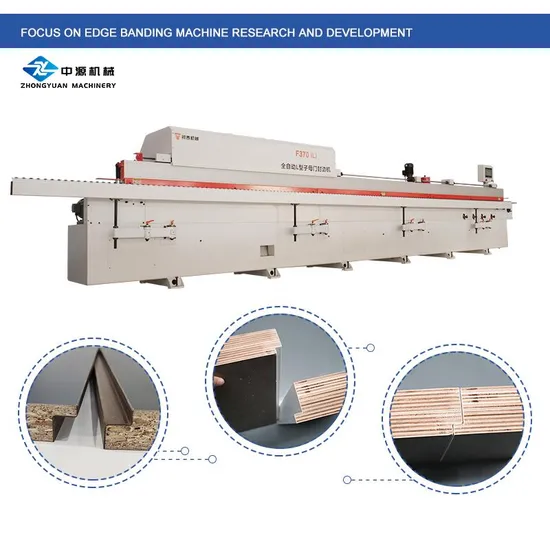

L shape soft forming edge banding machine:
1. Special machine, two shapes in one machine, perfect fit.
2. Glue pot:Melts and releases glue quickly, 2600ml large capacity, no need to add glue multiple times,no glue hanging, no glue waste, fast and convenient.
3. Milling unit:L-shaped plate edge milling, 4 groups of milling profiles, high-power pure copper motor, fast milling, strong power, diamond milling cutter, fast milling, smooth and burr-free, more durable.
4. End cutting:The front and rear ends are trimmed, and the excess edges are cut off at both ends. The inverter control helps to cut the edges quickly and accurately to ensure smooth and even edge trimming.
5. Press:Staggered flexible heat press stickers can be adjusted individually. Equipped with a digital display temperature control system to independently set the desired temperature.
6.Panel trimming:Trim the edges twice, rough trimming and fine trimming, to trim off the excess edge banding material of the board so that the upper and lower edges of the edge banding strip are flush with the upper and lower surfaces of the board.
7.Scraper:Scraping arc, removes excess bonding lines to form curves, pneumatic flexible scraping, removes excess bonding lines and burrs on the equipment, leaving it clean and free of debris.

Model	F370(L)
Voltage	380V/50hz/3 phase can customize
Total power	47kw
Air pressure	0.6-0.8Mpa
Tank volume	5L
Exernal dust collector	Φ100*8
Glue pot operating temperature	110ºC-210ºC
Edge band thickness	0.52-0.56mm
Glue pot	2600ml
Feeding speed	8m/min
Type of hot melt adhesive	PUR EVA
Edge band width	70mm
Plate size	≥250*120mm
Plate shape	L-shaped (see attached picture for size range)
Edge banding material	PVC (matt surface is recommended, glossy surface not required)
Dimensions	8300*1000~1560*1680 (length*width*height mm)
Net weight	2650KG

Detailed Photos

Product Application

Company Profile

Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
