| Product name | OEM/ODM Cable assembly and Wire harness for different application |
| Conductor | Bare Copper, Tinned Copper, Silver Plated, Gold Plated wire etc. |

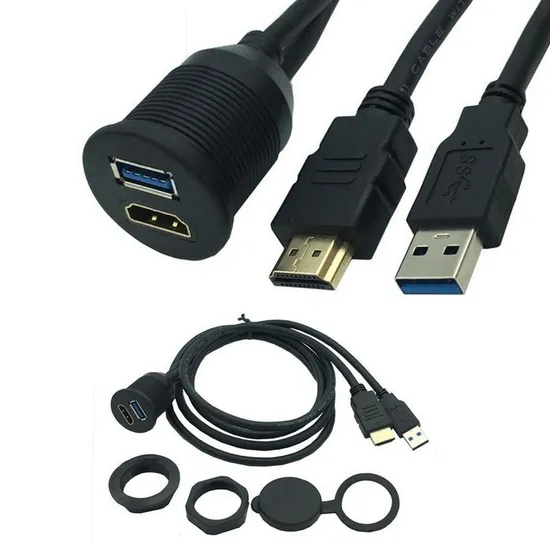

| Cable type | HDMI cable ,UL cable, VDE Cable, Automotive Wires, Medical Cable, High temperature cable, Rubber cable.etc |
| Cable size | 2AWG-32AWG, 0.01mm2-50mm2,1 Core~50 cores are available |
| Cable material | PVC, CPE, LDPE, TPE, HDPE,PE, Fluor copolymer, Oil Res II, Low Smoke Zero Halogen (LSZH) and Polyurethane etc. |
| Rate temperature | 80ºC, 105ºC, 125ºC, 180ºC, 220ºC, 300ºC (176°F- 572°F) |
| Cable certificate | UL, CSA, VDE, CE, RoHS, ISO9001 etc or Customize Special Cables |
| Cable color,length | According to the customers' requirements |
| Connector Type | TE, Amphenol,Deutch, JAE, Hirose, Molex, AMP,JST etc, based on customer's request |
| Protection pipe | PVC tube, Corrugated pipe, Shrink Tube, Braid Tube etc |
| characteristic | Corrosion-resistant, low-smoke halogen-free, tensile, wear-resistant, oil-resistant, temperature-resistant |
| Application | Industrial, Medical, Automotive, Consumer Electronics etc. |
| Engineering service | Support for development and early Design, analysis 2D or 3D drawings |
| Company Service | both OEM and ODM are welcomed |
| Cable preparation | Extruding, Stripping, Tin coating, Twisting etc |
| Final assembly | Bolting,Binding,Shrinking,Extruding,Strain Relief Molding,Inner and Outer Molding etc. |
| Quality Control | 100% inspected according to customer's test requirements before dispatching. |
| Packaging | Inner PE bags with label, outside carton, or per customer's requirements. |
| MOQ | Defined based on different products and requirements. |
| Samples | Samples will be provided for approval before mass production |
| Delivery Time | 20~30 days |
| Payment | PayPal, Western Union, L/C, T/T |
Wire & cable manufactureComponent manufactureComplete harness manufactureOver-braiding & encapsulationOver-moldingMetal stampingInjection mouldingDie-castingIn-house tooling
Engineering CapabilitiesWire designComponent designHarness design2d drawing3d drawing3d flattening3d form boardsSynchronous Design & W/H layoutForm board assembly including jigs & fixtures Certifications
Shipping & Delivery1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;2. By Air or by Sea for batch goods; Airportport receiving;3. Customers specifying freight forwarders or negotiable shipping methods!4. Delivery Time: 3-7 days for samples; 15-30 days for batch goods. After Sales Service
If you don't find your Wiring&cable assembly, please don't rush to go.You can email us your custom wire harness drawing and we will reply within 12 hours :)
