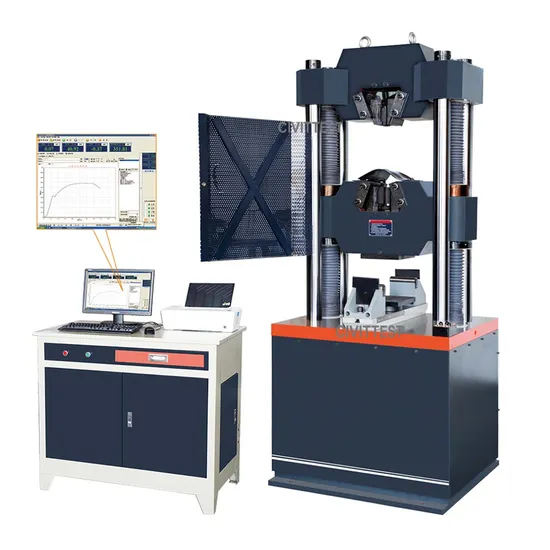

Automatic 1000kn Computer Controlled Hydraulic Servo Universal Testing Machine

Product Description

Automatic Rebar Material Tensile PC Controlled Hydraulic-servo Universal Testing Machine Product Description I. Use
It used to test the tensile strength, bending degree and maximum strength of metal materials ,etc
II. Standard
ASTM D1559
Product Parameters

No.	Capacity	100KN	300KN	600KN	100KN
1	Precision	class one	class one	class one	class one
2	Load measuring range	2%-100%FS	2%-100%FS	2%-100%FS	2%-100%FS
3	Loading accuracy	1%	1%	1%	1%
4	Loading resolution	0.01KN	0.01KN	0.01KN	0.01KN
5	Displacement accuracy	1%	1%	1%	1%
6	Piston moving speed	0-70mm/min	0-70mm/min	0-70mm/min	0-70mm/min
7	Piston stroke	200/250mm	200/250mm	200/250mm	200/250mm
8	Beam moving speed	0-270mm/min	0-270mm/min	0-270mm/min	0-270mm/min
9	Effective tensile span	0-550mm	0-600mm	0-650mm	0-700mm
10	Effective compression span	0-450mm	0-470mm	0-500mm	0-500mm
11	Round specimen clamp	0-20mm	0-26mm	0-40mm	0-60mm
12	Flat specimen clamp	0-15mm	0-15mm	0-26mm	0-40mm
13	Clamp width of flat specimen	75mm	75mm	75mm	75mm
14	Size of compression plate	205mm x 205mm	205mm x 205mm	205mm x 205mm	205mm x 205mm
15	Bending stick distance	350/500mm	350/500mm	350/500mm	350/500mm
16	Bending stick width	75mm	75mm	75mm	75mm
17	Bending degree allowance	205mm x 205mm	205mm x 205mm	205mm x 205mm	205mm x 205mm
18	Oil pump power	350/500mm	350/500mm	350/500mm	350/500mm
19	Beam moving motor	75mm	75mm	75mm	75mm
20	Displacement testing device	205mm x 205mm	205mm x 205mm	205mm x 205mm	205mm x 205mm
21	Overload protection	350/500mm	350/500mm	350/500mm	350/500mm
22	Weight	2000kgs	2200kgs	2800kgs	3000kgs

Detailed Photos

Certifications
IV. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
V. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
VI. Contact us:
Hangzhou Civit Instrument Equipment Co., Ltd.
Website: civittest.en.made-in-china.com

---
