4TF Log Planing Machine, Hydraulic Rounding Machine, Woodworking Machinery

Product Description

Product Description

1.Product brief introduction
If the wood log is rotary peeled directly without wood debarking, the bark fiber block blade seam easily. And there is the metal and soil sand in the bark, these things easily damage the knife blade during veneer rotary cutting work, so the wood bark must be removed before rotary veneer peeling. This machine is main equipment to remove wood bark and before veneer peeling work.
Product Parameters
2.Product parameter list

Model	ALVA-LD-4FT04
Working log diameter	Φ130~500mm
Rotary knife specification	1500 * 180 *16 mm
Diameter of roller	200 mm
Linear speed	50m/min
Reference output	120 m³/ day
Hydraulic system power	7.5kw
Power of single roller	11kw
Single roller reducer	350
Power of double roller	11kw
Double roller reducer	R87
Total power	29.5kw
Product dimension	3600 * 2200 * 1500 mm
Weight	4500kgs

3.Product superiority
1) After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2) Adopts rotary cuttingprinciple of non-chuck rotary lathe
3) Hydraulic pressure drive into the constructions, can quickly and effectively
remove bark and complete log the round work
4) One debarker machine can supply with two rotary lathe, save about five or six people
5) Hydraulic feeding, can debarking and roundup small size raw log
6) Competitive price and quality

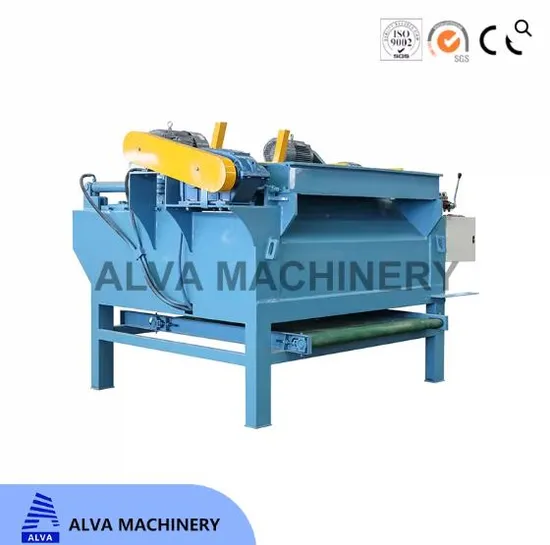

4.product picture
5.Main features
1) Online technical and engineers support.
2) With principle of peeling, removing the log's skin and straighting logs.
hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark,
round.,one set debarker can supply 2 set peeling machine .
3) It saves the original manual peeling, rounding procedure, save 5-6 human .
Why Choose Us:
lasering your logo on products and designing logo is free Inspect the machine before leaving the factory Oversea install and debug the equipment Train the first-line operator 24 hours online service Provide the VIDEO with install and debug the equipment Provide technical exchanging Delivery time within 30days No else charge MOQ≥1 Provide products quotation Provide Packaging customization service SupportWechat/Email/whatsapp/ We specializein this field for 25 years Excellent after-sale system Supporting visits to factory

FAQ:

Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.

---
