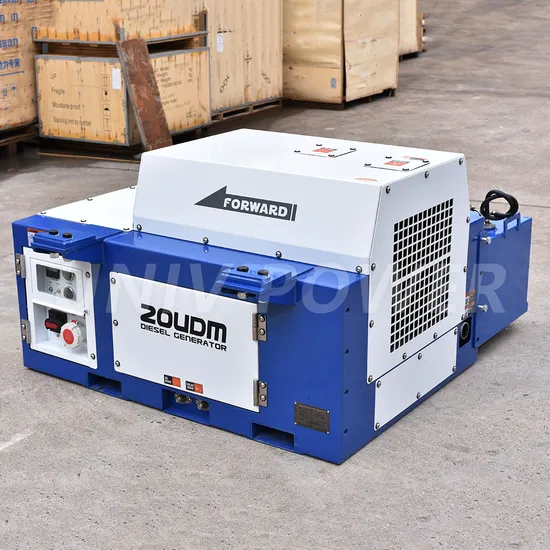

Made in China Freezer Generator for Refrigerated Container

Product Description

Product Description Long time fuel supply
With big size fuel tank, It can offer at least 80hours operation It means your fresh foods and drinks etc. will enjoy over 600km transportation journey without stop.
Intelligentize mechanical Control System
1. Reliable mechanical type control system, easy to be operated, continuous operation under harsh surrounding
2.All protection function for safety, high water temperature/low oil pressure auto stop and alarm.
Safety and convenience
Mounting Clip for clip on type and header pin for underslung time both made of high strength steel. Configure one step attach, connecting and disconnecting in minutes.Waterproof design control system and IP65 power output socket, operation under any weather condition
Durable canopy design.
Anti-corrosive paint on the basis of plastic coating makes it shining and the most importantis,isolating the salty and damp operation surrounding of the generator.
Details Concern
Bug proof nets with dense mesh configured for preventing bug and particulate ,We prepared plenty kinds of color with durable coating powder for individuation and recognizability,make it your unique units and brand.

SPECIFICATIONS	20ESX	20UDM
Rated power(kw)	15kw/18.75kva	15kw/18.75kva
Frequency(Hz)	60	60
Voltage	460V	460V
Noice level for silent type (Db)	74/1M	74/1M
Amps(A)	23.5	23.5
ENGINE	Water-cooled4-stroke	Water-cooled,4-stroke
Model	404D-22G	404D-22G
12 hours rated power(kw)	21.3	21.3
Cylinders	4	4
Borexstroke(mm)	84x100	84x100
Intake Method	Nature Intake	Nature Intake
Displacement(L)	2.2	2.2
Fuelconsumption(L/h)	3.5	3.5
Cooling starting method	Electric start	Electric start
Engine manufacturer	PERKINS	PERKINS
ALTERNATOR	UNIV	UNIV
Rated power(kw/kva)	18/22.5	18/22.5
Rated currency(A)	31.5	31.5
Power factor(cos)	0.8lagging	0.8lagging
Phase / Rotary speed	3-phase1800rpm	3-phase1800rpm
Excitation	Brushless, Self exciting	Brushless, Self exciting
Voltage regulation	Automatic	Automatic
Net weight(Silent type)(kg)	1100	680
Packing size(silent type)LxWxH(mm)	2368*729*1073	1390*1613828
Fuel tank capacity(L)	390	180

Our Service Warranty service Warranty for 1 year or 1000 running hours.During the warranty period, if any accessories are damaged, free accessories will be provided. Test for high performance A professional team will provide good service, advanced equipment provide a strict checking and measuring environment for high quality product, low fuel level, oil presssure, water temperature, full load test, over load 110% etc. we will test all function to make sure our production running good, so we use load bank for test more stabilized and reliable. Company Profile
ZHEJIANG UNIVERSAL MACHINERY CO.,LTD. since 2007 specialized in production and slaes of Diesel generators, Super-silent generator,REEFER CONTAINER generator, Solar light tower,Mobile generator light tower, Air compressor, and other the development of new products.
Our factory locaed in Quzhou city, west of Zhejiang provice in China, Factory occupies over sixteen thousand square meters and has a beautiful, clean and tidy environment. "strict management, brave innovation, customer satisfaction and strive for the brand." is our manufacturing principle. Through the improvement of the production process, we have accumulated rich experience in design,manufacture and debugging. We used the most advanced full-automatic laser cutting machine and automatic bending machine to improve production level.High-quality raw materials, advanced technology and equipment as well as good management enable us to provide customers with good-quality products and international-level service.Ensuring reliable and steady performance of our products.
We set branch in DUBAI,for spare parts supply and after sales.Till nowadays we developed agent in main countries all over theworld like USA Australia,France,Indinesia,Palestine,Nigeria,Venezuelia,Philppines,Malasia,Singapore ect. Our products are sold all over the world. We offering UNIV power system equipment and high-quality sevice to over 100 contries.
Production process Full-automatic laser cutting machine
High precision equipments have the ability to ensure the consistency of product high quality, The canopy is formed by cutting and bending using 2 mm cold-rolled sheets from big company in China, without burr, every part of canopy smooth and beautiful, artwork standards.
Automatic bending machine Advanced system that achieves precise (0.03mm) and economical bending results even in lot sizes of less than ten. All related sheet-mental parts can be treated self-directed.Ensure the efficiency and pertinency. Setting complete manufacturing system to ensure batch consistency of the quality.
Welding You know good welding technology not only affects the aesthetic degree of product, but also decide the quality of product, we use 3 types welding equipment: electrowelding, argon arc welding and GMAW-MIG for different parts connect.
Polishing We pay attention to every details, after welding and poslish every parts, Its function is to clear the surface of the surface of
burr, rust, oil, dust, and remove coarse particles and impurities on the coating surface and obtain flat surfaces, so when powder coating canopy for get stronger adsorption force.
Plastic coating Powder Canopy surface by the phosphate treatment using, oil and rust removing, using special plastic powder electrostatic spraying,coating adhesion, strong, bright color, Adopting outdoor use plastic coating powder, with accurate color,beautiful appearance,and durable on rustproof performance, also have specialized equipment to protect environment for longer development in the future.
Assemble Good management and operation to provide a shorter delivery time.
Exhibition
Packing & Delivery

---
