HB-C9-C10 Modern Commercial Remote Controlled Electric Sliding Door Motor Sliding Door Operator Automatic Door Sliding System

Product Details

Product Description

Product Description

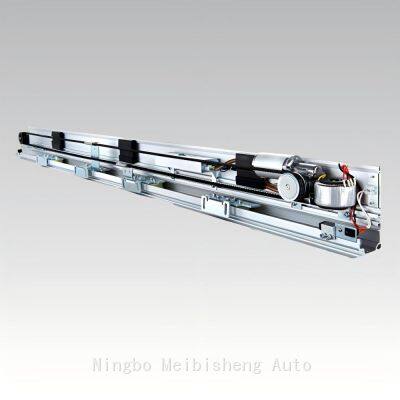

Automatic Sliding Door System
Product Description
Technical Parameters Modern Commercial Remote Controlled Electric Sliding Door Motor Sliding Door Operator Automatic Door Sliding System

	HB-C9		HB-C10
Horizontal pull	Single door	Double doors	Single door	Double doors
Leaf weight	≤150kg	≤120kg*2	≤200kg	≤150kg*2
Width of door	700~1300mm	600~1250mm	700~2000mm	600~1800mm
Controller	High-performance micro-controller		High-performance micro-controller
Motor	DC 24V 55W brushless motor		DC 24V 100W brushless motor
Opening speed	≤400mm/s (adjustable)		≤400mm/s (adjustable)
Closing speed	≤300mm/s (adjustable)		≤300mm/s (adjustable)
Door hold time	0.5~10s (adjustable)		0.5~10s (adjustable)
Manual thrust	≤45N		≤50N
Opening direction	Optional		Optional
Supply voltage	AC110V/AC220V 50Hz/60Hz		AC110V/AC220V 50Hz/60Hz
Temperature	-30~50℃		-30~50℃
Humidity	35~85%RH(non-condensing)		35~85%RH(non-condensing)
Extensions	Safety light eyes, such as remote control of various types of access control

Benefits & Features
*Advanced Operating System: High efficiency and small bulky drive torque DC brushless motor, program design using the latest technology, runs fowing, gentle opening and closing, making operation more quickly quiet, smooth braking, energy saving and environmental protection.
*Security: Standard configuration can be connected to a variety ofadditional accessories, suitable for all occasions, environmentalneeds. Pinch excellent performance, just gently touched the door willautomatically bounce obstacle, and quickly open the folder to avoiddamage to human events and the unit occurs, run more safely.
*Unique manual operation: In the case of automatic doors do not install any sensor, the dial canbe achieved by way of the hand the door open, close and normally open function, cost savings, the installation more convenient, especially for indoor applications. This feature has applied for patents.(Remark: 1.The light dial open; 2.THR normally open; 3.Normally openstate, the light automatically shut down after.)
*Unique physical design: The transmission mode and compact modular structure design of synchronous belt type of flat, without having to install crossbeam, the more convenient installation, space saving, compact appearance.
*Reliability: Using the new drive, high-quality DC brushless motor, gear boxhelical gears, wheels and high wear characteristics reasonablestructural design makes reliable quiet operation and longer life.
*Application: Standard configuration can be connected to a variety ofadditional accessories, suitable for all occasions , environmentalneeds.
*Convenient: Good modular design and compact design, beautiful appearance, installation is very simple. Simply follow the instructions of the various components in the power fixed beam, and then connect the power supply and other interfaces, power to run.
*Safe: Excellent performance pinch, just gently touched the door will automatically bounce obstacle, and quickly open the folder to avoid damage to human events and the unit occurs, run more safely.
Packaging & Shipping
1. Carton or Wood box package
2. We can offer the door to door service by air of by sea, just depend on your actual request. Such as DHL, UPS, TNT, Fedex...by air; and the sea transportations
Our Service
Service is at the heart of our operations. Our service encompasses a comprehensive suite of solutions tailored to meet the diverse needs of our esteemed clients.
Factory Warranty: Wholelife Free Service. Online Instruction
Company Information
Ningbo Meibisheng Auto-gate CO.,LTD was founded in 1995. the headquarter is located in Ningbo, China.
Our group specialize in automatic door operataaors, hospital doors, steel door, medical protective equipment and access control systems.
We are a high-tech enterprise which integrates R&D, manufacturing, sales and after-sales service. Mbsafe Group enjoys rich technical resources, intelligent system, owns a number of independent core technologies and exchanged cooperation technology with Europe and America By communicating and learning with European countries, introducing advanced equipment, we produce our own typical automatic door operators, hospital doors and access control systems.
Our products share many features, such as high quality, low noise, stable performance, convenient installation and high safety.
After 25+ years of develop, Mbsafe Group owns six series of products.
We have been certified by ISO9001, ISO14001, TUV and CE. Our products are widely used in hotels, banks, airports, commercial buildings, hospitals and factories. Mbsafe brand products enjoy high reputation in domestic market, such as hospital engineering, cleaning and building fields.
Mbsafe products are widely exported to Europe, Middle east, Southeast asia and other countries. More and more customers accept our products, believe our products and fall in love with our products.
FAQ
Q1. Where is your company?
A1: Our company located in Ningbo city, close to Shanghai. 1.5h driving from PVG airport.
Q2. Are you a manufacturer or trading company? What can I buy from you?
A2: We are manufacturer. We specialize in automatic door operators, hospital doors, X-ray room doors, steel doors, garage door, platform safety shield door, lifting floor column, height adjustable desk, access control systems, hardware and so on many intelligent automation system products.
Q3: Are Mbsafe products easy to maintain?
A3: Yes, we come with professional maintenance manuals. Products are easy and convenient installation.
Q4. Do you provide OEM Service?
A4: Yes,we do. We are a professional manufacturer of automatic door with 25+ years of customization experience.
Q5. How long is your warranty? What kind of after-sale service can you provide?
A5: Our warranty is 2 years since the project done. During the warranty time, if anything has problems, we will replace it. If you can’t handle it, we will send engineer come to solve it without any charge.
Q6: How long is the delivery time?
A6: It ranges from 10-50 work days depending on different quantities and requirements.
Q7: How Is The MOQ?
A7: The MOQ Is 50 Sets.
Q8: How Can I Get The Samples?
A8: You Can Send Inquire To Us In Goldsupplier.
Q9: How about the payment terms?
A9: We accept payment terms as T/T; D/P; L/C, WU, Paypal.

---
