Full Automatic 2L Bottle Making Machine

US$34,000.00-35,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DSB70II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Station
Single Station or Double Station
Die Head
Single Head or Double Head
Max. Product Volume
5L
Auto-Deflashing
with Auto-Deflashing
Clamping System
Toggle Type Clamping System
Mould
One Cavity or Two Cavity
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Sutiable
0~5L Bottle
Made in
China
Machine Dimension (L*W*H)
3.3*2.3*2.6m
Total Weight
5.5ton
Clamping Force
68kn
Platen Opening Stroke
200-500mm
Extrusion Motor Power
22kw
Transport Package
Film Packing
Specification
DSB70II
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
400~450 PCS/H

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

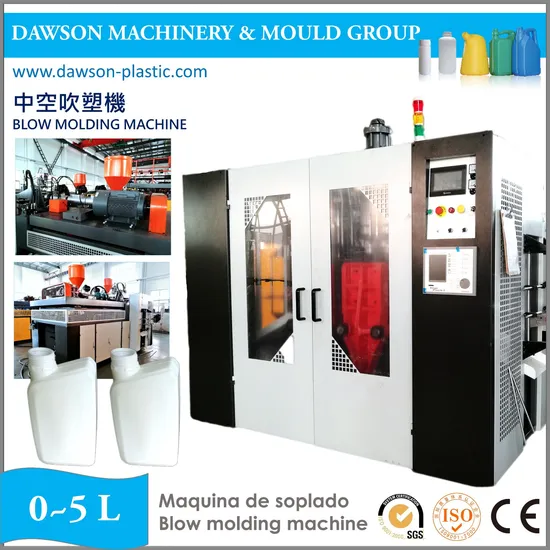

Automatic Extrusion Blow Molding Machine DSB70II u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 180~200 pcs/h (5L) / with single head
400~450 pcs/h (1L) / with double head
SPECIFICATIONS UNITS DSB70II SERIERS
Max container capacity L 5
Number of die heads Set 1
Dry cycle time Second 5
Machine dimension (L*W*H) M 3.3*2.3*2.6
Total weight Ton 5.5
CLAMPING UNIT
Clamping force KN 68
Platen opening stroke mm 200-500
Platen size mm 360*470
Max mould size (W*H) mm 390*470
Mould thickness mm 210-300
Platen moving distance Mm 440
POWER
Extrusion motor power KW 22
Oil pump motor power KW 5.5
Extrusion heating power KW 12
Head heating power KW 5.7
Cooling Fan power KW 0.26
Total power KW 45.46
Average power consumption KW 23.5
EXTRDER UNIT
Screw diameter mm 70
Screw L/D ratio L/D 24
Plasticizing capacity Kg/hour 90
Number of heating zone Zone 3
Extruder heating power KW 14.2
Extruder driving power KW 22
Cooling Fan No 2
Fan power KW 0.26
DIE HEAD
Head type Continuous extrusion head
Head No 1 2 3 4
Central distance / mm - 160 110 85
Max die diameter / mm 135 80 50 30
