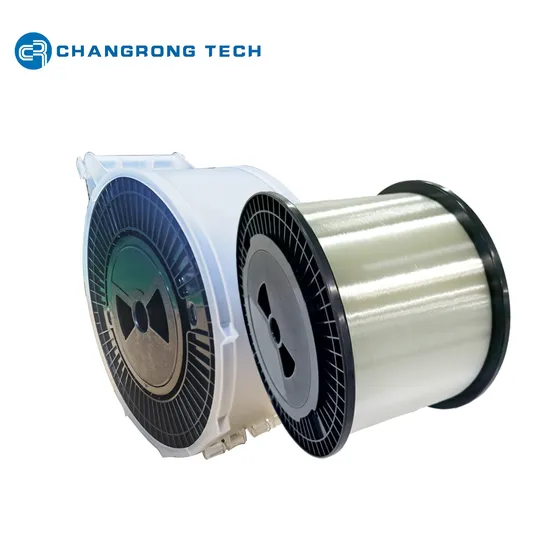

OEM ODM Silica Glass G652D Bare Fiber Optic Single Mode Optical Fiber

Product Description

Detailed Photos

Product Description
G. 652.D single mode optical fiber is designed specially for optical transmission systems operating over the entire wavelength window from 1260nm to 1625nm. By suppressing the water peak that occurs near 1383nm in conventional single mode fibre due to hydroxyl (OH-) ions absorption, the fiber is able to open E-band (1360-1460nm) for operation, and consequently provides 100nm more usable wavelengths. It optimizes attenuation and dispersion across the entire wavelength window from 1260nm to 1625nm, also reduces bending loss at L-band (1565nm~1625nm), and provides bandwidth resources for trunk, metropolitan area and access network.
Characteristics
(1) Comply to or superior to the ITU-T G.652D recommendation and IEC 60793-2-50 B1.3 specification.
(2) Designed for operation over 1260nm to 1625nm wavelength spectrum.
(3) Outstanding optical performance supporting high-speed transmission requirement of DWDM and CWDM.
(4) Excellent PMD performance, supporting high-speed and long repeater spacing transmission system.
(5) Compatible with existing 1310nm equipment.
Application
(1) Application for all kinds of configuration of optical fiber cables: central loose tube, stranded loose tube, backbones fiber optics, ribbon fiber optics, ADSS, OPGW etc.
(2)Low dispersion , attenuation and PMD enables higher transmission speeds with more wavelengths over Long-haul Trunks Communication, CATV and WDM.
Product Parameters

Characteristics		Unit	Value
Geometrical	Cladding Diameter	μm	125.0±1.0
	Cladding Non-circularity	%	≤1.0
	Core-Cladding Concentricity Error	μm	≤0.6
	Core Non-circularity	%	≤12
	Coating Diameter	μm	243±0.5
	Coating-Cladding Concentricity Error	μm	≤12
	Curl Radius	m	≥4
Attenuation	1310nm	dB/km	≤0.35
	1383nm	dB/km	≤0.33
	1550nm	dB/km	≤0.21
	1625nm	dB/km	≤0.24
Attenuation vs Wavelength Max Difference	1285nm ~ 1330nm vs 1310nm	dB/km	≤0.04
	1525nm ~1575nm vs 1310nm	dB/km	≤0.03
	1485nm ~1580nm vs 1550nm	dB/km	≤0.04
Dispersion Coefficient	1285nm~1340nm	ps/(nmkm)	≥-3.5 ≤3.5
	1271nm~1360nm	ps/(nmkm)	≥-5.3 ≤5.3
	1480nm~1580nm	ps/(nmkm)	≤20
	1550nm	ps/(nmkm)	13.3-18
	1625nm	ps/(nmkm)	17.2-23
Zero Dispersion Wavelength λ0		nm	1300-1324
Zero Dispersion Slope S0		ps/(nm²km)	0.073-0.092
Typical Value		ps/(nm²km)	≤0.086
PMD	Maximum Individual Fiber	ps/√km	≤0.06
	Link (M=20, Q=0.01%)	ps/√km	≤0.06
	Typical Value	ps/√km	≤0.04
Cable Cut-off Wavelength λcc		nm	1180-1330
MFD	1310nm	μm	9.1±0.4
	1550nm	μm	10.4±0.5
Effective Group Index of Refraction	1310nm		1.4672
	1550nm		1.4683
Point Discontinuity	1310nm	dB	≤0.05
	1550nm	dB	≤0.05
Temperature Cycling	-60ºC ~+85ºC	dB/km	≤0.03
Temperature Humidity Cycling	85ºC, RH 85%, 30 Days	dB/km	≤0.03
Water Immersion	23ºC, 30 Days	dB/km	≤0.03
Dry Heat Aging	85ºC, 30 Days	dB/km	≤0.03
Proof Test		%	≥1
		N	≥9.1
		Gpa	≥0.73
Coating Strip Force	Peak Force	N	1.3-8.9
	Typical Value	N	1.9
Dynamic Fatigue Nd			≥20
Macro-bend Induced Attenuation	1 turn around a mandrel of Φ 32 mm ,1310nm	dB	≤0.05
	100 turns around a mandrel of Φ 60 mm 1550nm	dB	≤0.05
	100 turns around a mandrel of Φ 60 mm , 1625nm	dB	≤0.05
Length per reel		km	24.4/48.8/50.4

Packaging & Shipping
Workshop
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co.,Ltd was established in August 2017 ,with a registered capital of RMB 500 million yuan. The company, located in Chuzhou High-tech Industrial Development Zone Anhui Province, is a high-tech enterprise specialized in R&D, production and sales of optical fiber for 5G communication and various types of indoor and outdoor optical cables and devices.
The company has 9 advanced optical fiber drawing towers that won the Second Prize of The State Scientific and Technological Progress Award, a total of 18 production lines and an annual production capacity of 15 million Kilometers. At the same time, the company has introduced more than 500 sets of the most advanced production and testing equipment from the United States, France and other countries at home and abroad to achieve the best solutions for customers.
Adhering to the business philosophy that "the market is the sea, quality is the ship, brand is the sail",the company will continuously enhance production efficiency, expand sales markets, develop new product varieties and continue to improve product quality, so as to provide customers with better services.

---
