Jez Automatic Laser Marking System 50W Laser Marking Machine

Product Description

https://jezlaser.en.made-in-china.com/product-list-1.html

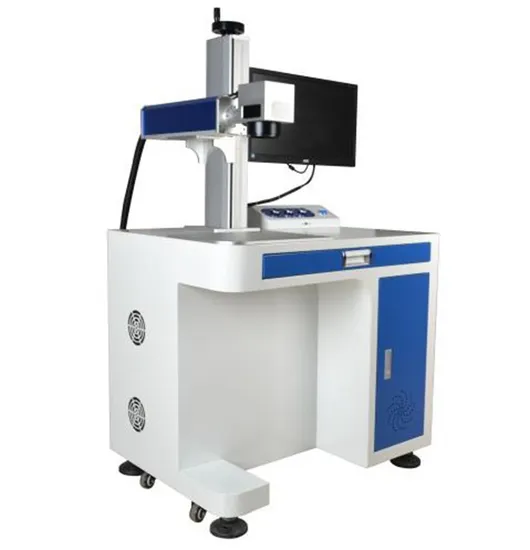

Jez Automatic Laser Marking System using newest air cooling fiber laser source which guarantee stability marking on metal and some kind of non-metal like plastic .
With different laser power from 20W to 200W ,the laser marking machine is widely used in many industry applications like logo marking ,serial No. marking ,name plate marking ,code marking.....
Features :
High efficiency in electrical / optical conversion, wind cooling ;
Small in size, with high beam output quality, high reliability;
Fast marking speed which at least 3-12 times faster than traditional machine ;
No consumable ,long term service life of the laser source,energy saving;
Low power consumption and easy to operate.
Applications
Electronic components, integrated circuits (IC), electrical appliances, mobile communications, plastic buttons, colored paper, food packaging, watches, molds, seals, bearings, auto parts, hardware, tool accessories, building materials, PVC pipes, etc.
It is also suitable for special surface treatment (phosphating, aluminum anodization, electroplating surface, surface oxygen breaking of aluminum-magnesium alloy)
Specifications(For Reference)

Laser Power	50W
Laser wavelength	1064nm
Repeating Frequency(KHz)	1-4000
Beam Quality	M²<1.4
Marking Range	100mm x 100mm(Optional)
Pulse Width (ns)	2-500
Marking Speed	≤10,000mm/s
Min.line Width	0.01mm
Min.Character	0.15mm
Repeatability Accuracy	±0.002
Power Supply	1PH / 110 / 220V±10% / 50-60Hz
Operating System	Win 7
Cooling Way	Built-in air cooling
Control Interface	Standard USB
File Format	All character styles from character store of OS
Laser Type	Pulse

FAQ
Q: Are you a manufacturer ?
A: Yes,we are manufacturer with our own manufacture center .
Q: What is your main products ?
A: Our main products are laser cleaning machine ,laser welding machine ,laser cutting machine and laser marking machine .
Q: Can print our Brand name and Logo on the machine ?
A: Yes,OEM accepted

---
