Automatic Steel Construction Roll Forming Equipment Span Panel Curve Machinery Arch Roof Sheet Bending Machine

Product Description

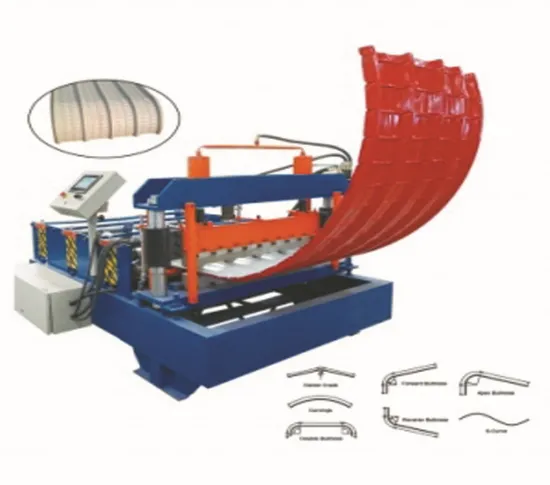

Arching Tile Crimping Roll Forming Machine

Production Information

We are a Chinese manufacturer of hydraulic motor driven plate bending machines for 14 years.We use internationally advanced design drawings.Using national standard copper motor.All our shafts and rollers are made by ourselves and we can inspect them in time.We use one rough process and two finishing operations to gradually improve the accuracy of the parts.
Vertical Steel Sheet Arching Forming Machine


Horizontal Steel Sheet Arching Forming Machine

Parameters

No	Item		Specification
1	Product name		Steel Sheet Arching Roll Froming Machine
2	Raw material	Material	PPGI GI
		Feeding width	As drawing
		Thickness	0.3-0.8mm
3	Decoiler	Operate	Hydraulic
		Weight capacity	5ton
4	Main forming machine	Roller station	18
		Diameter of shaft	80mm
		Roller material	High grade 45# steel
		Frame	Steel plate welder
		Cutting material	Cr 12
		Operation	Automatic cutting
		Working speed	15-20m/min
5	Power	Driving way	chain/Hydraulic
		Main motor	7.5kw
		Voltage	380V 50hz
6	Control system	Electric box	PLC control system
		PLC brand	DELTA

Company Information

Since its establishment, Cangzhou Dixin Pressing Tile Machinery Co., Ltd. has been dedicated to the research and manufacturing of metal plate cold bending roller forming equipment. It now has a unique management model and product development capabilities, ranking at the leading level in the industry. Our company's products are highly favored by users due to their lightweight structure, reasonable design, and continuous updates.
Our company is located in Botou City, a famous casting city in China, in the Bohai Economic Circle. It is bordered to the north by Beijing Tianjin and to the east by Bohai Sea. National highways 104 and 106, the Beijing Shanghai Railway, and the Beijing Fuzhou Expressway run through the city, providing convenient transportation and superior location.


Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

Recommended Production

Our company has been dedicated to foreign trade for many years. We can provide customized production equipment. If you need, please inquiry or purchase in advance. We can provide you with competitive prices.
We can produce various types: we can also design machines according to customer requirements, and you can send us your panel drawings.
Contact me

We are convinced that you will get best quality machine and passionate and perfect service. Hope to cooperate with you!

---
