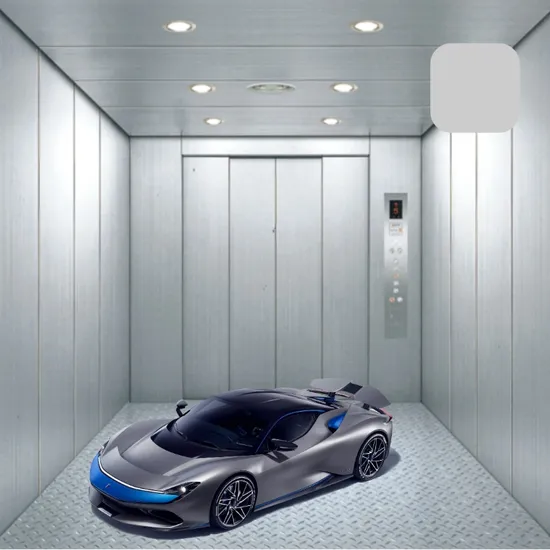

1-5 Ton Car Parking Lift Elevator Underground Garage Auto Car Lift

US$8,980.00-11,980.00 1 Set (MOQ)

Basic Info.

Model NO.

TLYX-CL-002

Type

Wellhole

Load Capacity

1000-15000kgs

Speed

0.63m/s

Drive Mode

Open & Close Type

Automatic

Lift Mechanism

Lift Chain

Deceleration Device

With Deceleration Device

Guide Rail

Hollow Guide

Elevator Door

Straight Fractional Door

Door Knife

Double

Attendant

Without Attendant

Material

Stainless Steel

Project Solution Capability

Graphic Design, Total Solution for Projects, Other

Control System

Monarch Vvvf Controller

Machine Room

with or Without

Transport Package

Trong Sea-Worthy Wooden

Specification

W1200 * D1500 * H2800

Trademark

TaiLin

Origin

China

HS Code

84281010

Production Capacity

300 Sets Per Month

Product Description

Product Description
Product Parameters

Single Door Small Room Elevator
Capacity	Speed	lnner dimension Axb(mm)	Net to open the door Size(mm)	Shaft Size(mm)	Machine room dimension
1000(KG)	0.5~1.0(m/s)	1400x1600x2200	1200x2100	2400x2100	2400x2100
2000(KG)	0.5~1.0(m/s)	1900x2100x2200	1600x2100	2900x2600	2900x2600
3000(KG)	0.5~1.0(m/s)	2200x2500x2200	1800x2100	3500x3100	3500x3100
5000(KG)	0.5~1.0(m/s)	2700x3200x2200	2200x2100	4000x3700	4000x3700

Small Room Less Elevator
2000(KG)	0.5~1.0(m/s)	1900x2100x2200	1600x2100	2900x2600	N/A
3000(KG)	0.5~1.0(m/s)	2200x2500x2200	1800x2100	3500x3100	N/A

Company Profile
Foshan YueXun(TaiLin) Elevator Co., Ltd Owns passenger lift, Sightseeing Lift, Freight elevator as its main products. In the last decade,
it thoroughly implemented the advanced management philosophy in development,design,manufacturing,sales,installing,maintenance,
financial accounting, and training, and won users' wide acclaim depending on its excellent and product quality and satisfyingservice quality.
Over the years, it has won the honorary titles "China Famous Brand" and "First-choice Green Brand", and has been rated a High and NewTech Enterprise.
