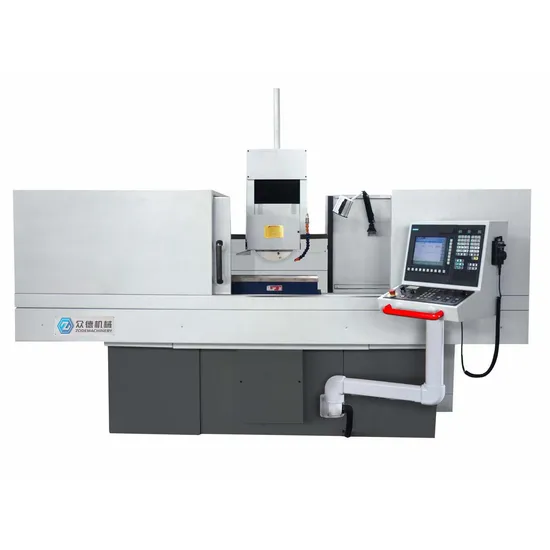

Surface Grinding Machine Sga30100ah Sga30100ahr Sga30100ahd

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SGA30100AH SGA30100AHR SGA30100AHD
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
305X1020mm
Wheel Size
350X40X127mm
Longitudinal Travel
1130mm
Cross Travel
340mm
Auto Feed
0.1-8mm
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month

Product Description


HYDRAULIC SADDLE MOVING SURFACE GRINDER MACHINEThe surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind
equipment for metal working. The well designed structure have good rigidity and keep the machine with high accuracy.Well designed
and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
SPECIFICATIONS:
MODEL SG2050AH
SG2050AHR
SG2050AHD		 SGA2550AH
SGA2550AHR
SGA2550AHD		 SGA3063AH
SGA3063AHR
SGA3063AHD		 SG30100AH
SG30100AHR
SG30100AHD		 SG4080AH
SG4080AHR
SG4080AHD		 SG40100AH
SG40100AHR
SG40100AHD
TABLE SIZE 200*460 254*508 305*635 305*1020 406*813 406*1020
LONGITUDINAL
TRAVEL		 510mm 640mm 765mm 1130mm 910mm 1130mm
CROSS TRAVEL 238mm 300mm 340mm 340mm 450mm 450mm
MAX DISTANCE FROM SPINDLE CENTER TO TABLE 450mm 580mm 580mm 580mm 580mm 580mm
SPEED OF TABLE LONGITUDINAL MOVING 5-25m/min 7-25 m/min
TABLE CROSS MOVING AUTO FEED 0.1-8mm
RAPID SPEED 990mm/min
FEED OF HANDLE 0.02mm/div.
WHEEL HEAD VERTICAL MOVING AUTO FEED (AHD) 0.005/0.01/0.02/0.03/0.04/0.05mm/stroke
RAPID SPEED (AHD/AHR) 460mm/min
FEED OF HANDLE 0.01mm/div.(AH) 0.005mm/div(AHR/AHD)
GRINDING WHEEL SIZE 200*20*31.75 350*40*127 50HZ: 400*40*127; 60HZ: 350*40*127
MAIN MOTOR 1.5KW 5KW 7.5KW
PACKING SIZE cm 190*170*215 217*212*213 235*222*213 295*222*215 285*227*215 295*227*218
GROSS WEIGHT KG 1800 2400 2800 3500 3800 4300
