Product Description
Product Description
Features:
1．Energy, pulse width, frequency, spot size, etc. can be adjusted in a larger range to achieve a variety of welding results. Parameters from the closed chamber control rod adjustment, simple and efficient;
2．Adopting imported ceramic condenser cavity, corrosion resistance, high temperature, high efficiency of photoelectric conversion, life span of concentrating cavity (8-10 years), life of xenon lamp of the laser spot welding machine are all more than 8 million times;
3．The use of the world's most advanced automatic shading system, eliminating the time in the work of the eye irritation;
4．With 24-hour continuous working capacity, machine performance and stability;
5．humanized design, ergonomic, long hours of work is not fatigue.
Main advantages: fast, high efficiency, large depth, small deformation, heat affected zone is small, high quality welding, solder joint pollution-free, high efficiency and environmental protection.
Technical data:
Product Name

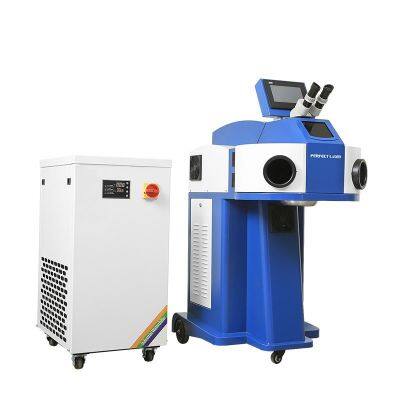

| Gold Silver Jewelry Laser Spot Welding Machine
|
Model
| PE-W200
|
Laser Medium
| Nd3+:YAG
|
Laser Power
| 200W
|
Laser Wavelength
| 1064nm
|
Pulse Width
| ≤20ms (Adjustable)
|
Pulse Frequency
| 1-50HZ (Adjustable)
|
Welding Spot Diameter
| 0.2-3mm
|
Filler Wire Diameter
| 0.1-0.5mm
|
Power Consumption
| 3KW15A
|
Power Supply
| AC220V+5% Single Phase
|
Operation Interface
| A 7-inch LCD Touch Screen Is Bilingual In Chinese And English
|
Locating System
| Microscope With Coaxial CCD
|
Cooling Typed
| Water Cooling
|
Machine Dimensions
| laser machine: 1000×480×1080mm water chiller:720×510×970mm
|
Machine Net weight
| 115KG
|
Laser welding minimum capacity pool
| 0.1mm
|
electricity demand
| 220V single phase/50Hz/20A
|
Laser power supply
| 9KW
|
>>
