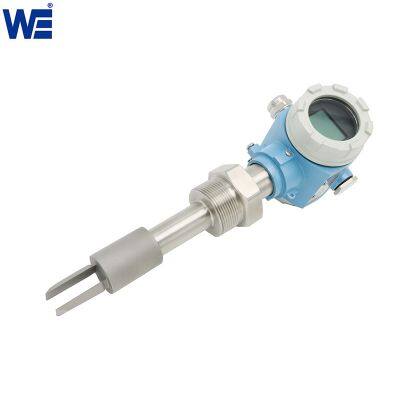

Fork viscosity meter for liquids is fork vibration type viscosity measuring instrument with range of 0-20,000cP at accuracy of 1% ,fork viscosity meter for liquids is direct insertion mounting by flange or thread connecting to both tanks and pipelines , this WPX401 smart viscosity meter can realize the real-time measuring and digital display.
To get the best measuring accuracy ans stability , just remember : Keep flow rates and speeds within the meter's parameters steady and consistent. Reduce temperature gradients in fluids with high viscosities as well as in the piping and fittings that are directly upstream and downstream of the meter. Viscosity shifts are less pronounced when temperature gradients are minimized.
What is the main applications of liquids fork viscosity meter ?
Combustion control: Oil Fired Heater and Boiler Control ;Maintenance and Emissions
Refining & Petrochemical: Product Detection and Quality ;Product Blending
Pipeline & Terminals: Interface and Product Detection;Volumetric Flowmeter Viscosity Correction
Product Name
| Fork Viscosity Meter for liquids –WPX401
|
Viscosity Measuring Range
| 0-20,000cP
|
Viscosity Accuracy
| ±0.2cP (0-10cP) then ±1%
Full scale of calibrated range max
±1cP (10-100cP), ±10cP (100-1000cP),
±125cP (1000-12,500cP)
|
Temperature Accuracy
| BS1904, DIN 43760 Class ‘B’ (±0.30 ±0.005 X T)°C
|
Wetted material
| SS316;PTFE;PFA; tantalum; Hastelloy C
|
Housing Material
| Die-casting aluminum
|
Safety Approvals
| Explosion/Flame-Proof
|
Process Connecting :
| Flange, thread, tri-clamp
|
Display
| Two-line, LCD screen
Optical switch configuration
|
Outputs
| Standard: 4-20mA, HART, Modbus RS-485
|
Protection Class
| Ingress Protection: IP66/67
|
Dimensions
| 355 mm (h) x 163 mm (w) x 163 mm (d) (Typical short stem version)
|
Weight (Typical)
| 6.7 kg (15 lbs)
|
Products Details
Application
Rich experiences in both designing and production of fork liquids viscosity meter , you can rely on us anytime for the professional solutions and technical guidance !
