Hot Selling High Output Industrial Drum Wood Chipping Machine

Product Description

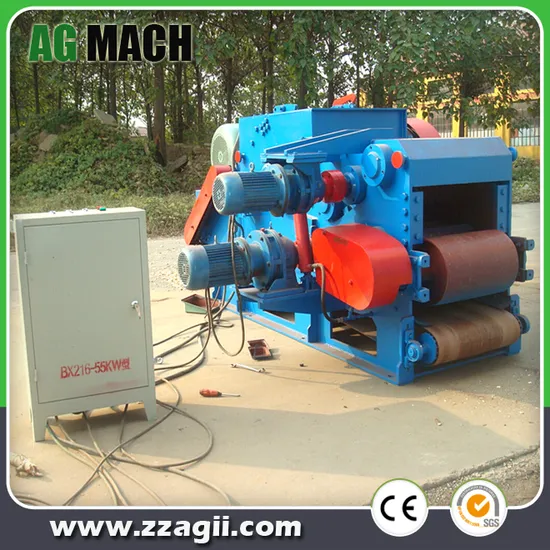

Forest WoodWorking Machinery Drum Wood Chipper Machine
Product Description:
The drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even length and uniform chip thickness.
It is also suitable for chipping of branches, twigs and planks. Cutting the main raw material of small diameter wood ,timber harvesting ,processing residues (such as branches ,twigs, slab, the log core veneer , waste),can also be used for cutting non-wood raw materials (such as sugar cane , reed , bamboo etc).
The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, we have improved different kinds of drum chippers recently, and the new type machines have more advantages.

Technical Parameters:

Model	BX-313	BX-315	BX-316	BX-318	BX-318	BX-2113
Main Power (kw)	30	45	55	110	110	220
Q'T'Y of flying blades (pcs)	4	4	4	4	5	4
Opener size (mm)	300x150	400x170	540x220	680x270	680x270	700x400
Input max diameter(mm)	130	150	200	250	250	300
Length of chips (mm)	10-20	10-20	10-20	15-25	10-15	15-20
Capacity (T/H)	2-3	3-5	8-12	15-25	15-25	25-35
Dimension of machine (m)	2.5x1.7 x1.3	2.6x1.8 x1.4	3.1x2 x1.5	3.5x2.18 x1.8	3.5x2.18 x1.8	3.68x2.45 X2.05
Weight of machine (kg)	2200	3380	4680	8320	9100	11850
Feeding belt conveyor (m)	4x0.3	4x0.4	6x0.55	6x0.7	6x0.7	8x0.72
Discharging belt conveyor (m)	10x0.4	10x0.5	10x0.6	10x0.8	10x0.8	10x0.8

Structure and Operating principle:
The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts, hydraulic system components.

Knife roller mounted on two or three, the four sword, used specially manufactured flying bolt, via a pressure block, knife fixed on the knife roller, according to the cutting material of varying thickness, upper feed roll assembly can use hydraulic system in a certain range of floating up and down, cutting down the qualified materials through the sieve hole down, exhausted from the bottom, the sheet will be in the cutting machine. The hydraulic system is composed of oil pump for oil cylinder can be activated to ,cover, easy blade replacement, the repair can lift the upper feeding roller assembly, is convenient for adjusting knife, knife at the end of the gap and the comb assembly.
Application:
Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard plant, medium, high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and manufactures in the production of the preferred stock preparation apparatus.
