High efficiency compost, topsoil, green waste sieving rotary trommel screen

Product Description

Product Description

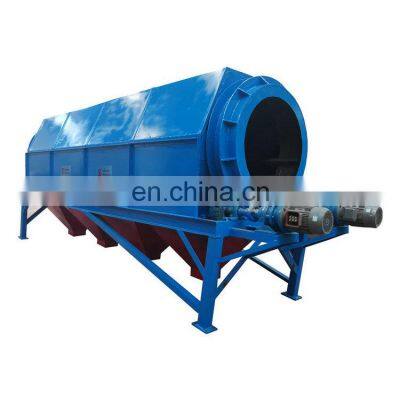

High efficiency compost, topsoil, green waste sieving rotary trommel screen Product DescriptionDue to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum. Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc Technical parameter of shaftless trommel screen ModelCapacity (t/h)Motor (kw)Drum size (mm)Feed Size (mm)Overall size (mm)Weight (KG)GTS-10155-2031000×1500less than 200 mm2600×1400×17002200GTS-102010-3041000×2000less than 200 mm3400×1400×22002800GTS-122520-805.51200×2500less than 200 mm4200×1500×26804200GTS-153030-1007.51500×3000less than 200 mm4500×1900×28205100GTS-154550-120111500×4500less than 200 mm6000×1900×30806000GTS-184880-150151800×4800less than 200 mm6500×2350×40007500GTS-2055120-250222000×5500less than 200 mm7500×2350×48009600GTS-2265200-350302200×6500less than 200 mm8500×2750×500012800 Company Information

---
