Commercial Chain type Garlic Peeling machine High Capacity Garlic Peeling Machine Automatic Garlic Peeler Machine

Product Details

Product Description

Product Description
Commercial Chain type Garlic Peeling machine High Capacity Garlic Peeling Machine Automatic Garlic Peeler MachineChian type Garlic Peeling Machine introduction: To meet the bigger garlic peeling capacity demand,our company design and produce large-scale chain type garlic peeling machine.This chain garlic peeler can guarantee zero damage of garlic rice processing ,and has good processing stability,high efficiency,easy cleaning and maintenance,and it is suitable for mass production.Products can be customized according to different production needs.
By changing some part, this Garlic peeling machine is also suitable for peeling onions.
The fully automatic dry garlic peeling machine produced by our company is a high-tech and high-efficiency garlic peeling machine. The garlic cloves can be peeled without soaking in water. The garlic cloves have a high cleaning rate and low damage rate. The equipment is used and maintained. Simple, safe and reliable.
This product uses compressed air as the driving force to generate a powerful swirling airflow to force the garlic to peel naturally. The processing process is automatically controlled by electricity and air, so that the garlic feeding, peeling and discharging can be completed at one time.
Chian type Garlic Peeling Machine Technical Parameters:

Model	WM-CSTP400	WM-CSTP600	WM-CSTP1000	WM-CSTP2000
Power	1.0KW	1.5KW	3KW	3KW
Capacity	400kg/h	600kg/h	1000kg/h	2000kg/h
Need air compressor	11Kw	37Kw	55Kw	110Kw
Matched air flow	1.6m3/min	＞5.5m3/min	＞7.0m3 /min	＞17m3/min
Matched air pressure	1.0MPa	1.0MPa	1.0MPa	1.0MPa
Weight	180kg	350kg	450kg	560kg
Dimension	1400*550*1340mm	1900*700*1460mm	2500*1000*1800(MM)	3800*1000*1800(MM)

Industrial Garlic Peeling Machine videos: 400kg/h Garlice Peeling video: 2000kg/h Chain type Galric Peeler video
Video In the Automatic Garlic Peeling line

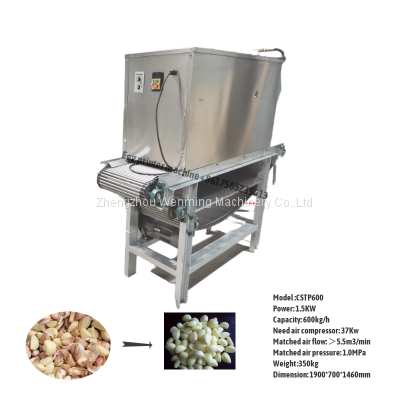

Chian type Garlic Peeling Machine Pictures:

---
