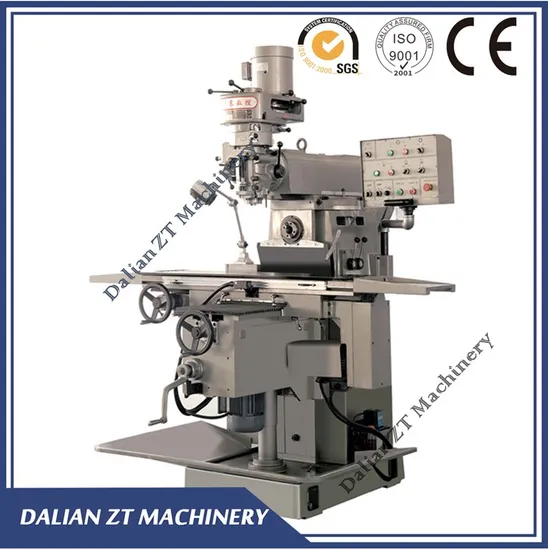

Europe Standard Bridgeport Type Vertical RamTurret Milling Machine

Product Description

Features:
The turret milling machine is widely used for machining plane and surface at any angle. It can mill slot, drill hole, ream and bore hole in workpiece. The milling head can rotate ±90° (left and right); ±45°(front and back), and the ram can rotate horizontally 180°. The spindle with overload protection can rotate at high speed. The machine can be equipped with DRO and auto feeder to customers' requirements.
X6330 X6330A X6325W Specifications

Item	X6330	X6330A	X6325W(V/H)
Table size	305x1370mm; 305x1500mm		254x1270mm
Longitudinal travel	870mm;1000mm		750mm
Cross travel	360mm		400mm
Vertical travel	380mm		400mm
T-slot No. and size	3x16		3x16
Ram travel	500mm
Distance from spindle nose to table surface			460mm
Spindle bore taper	ISO40		NT40/R8
Spindle travel	127mm
Spindle speed	Standard: 16 steps 50Hz:65-4500rpm 60Hz:80-5440rpm Optional: variable 65-3750rpm		V:66-4540rpm H:40-1300rpm
Spindle motor	3.7kW/5HP		V: 3HP H: 3kW
Head swivel	±90°		±90°
Head tilting	±45°	No.	±45°
Weight of machine	1630kg	1650kg	1380kg

WORKSHOP
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
