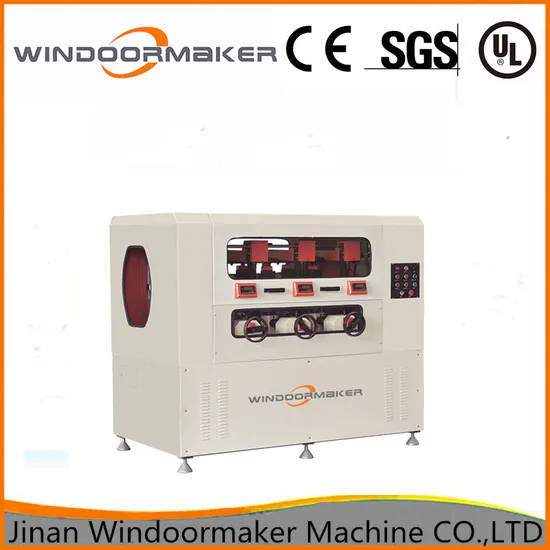

Thermal Break Strip Rolling Machine/Aluminum Profile Making Machine/ Composite Aluminum Profile Machine/ Aluminum Press Machine

Product Description

Product Description
Specification:
It is used to press and fasten the profile with thermal barrier strips. Profiles with teeth made and strips inserted---to roll and to achieve tightness of profiles 6 synchronous driven discs, step-less speed regulation through the frequency converter. Value of pressure and vertical height of three sets (six pairs or 12 pieces) rolling-discs are showed clearly. The whole height of all three sets (six pairs or 12 pieces) rolling-discs can be adjusted by CNC that depends on the aluminum profiles. When rolling different aluminum profiles, measuring value of height that aluminum profiles are rolled first, and imputing the value to the computer to adjust the rolling - discs to the place with high accuracy and speed by CNC. Technical Parameter:

Power supply	380V/50Hz
Total power	3.5Kw
Rolling-disc diameter	240mm
The whole height of three sets rolling-discs	0-80mm
Max. process range	230x230mm WxH
Overall dimension:	1800x1050x1650mm (LxWxH)
Weight:	1500Kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
