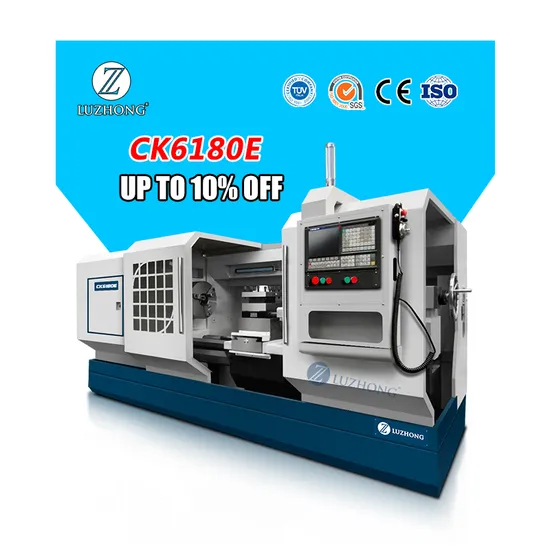

CK6180E Flat Bed Horizontal Lathe Machine Center CNC Heavy CNC Lathe Machine

Product Description

CK6180E Flat Bed Horizontal Lathe Machine Center CNC Heavy CNC Lathe Machine Product Description
Application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	CK6180E Manual HYD.
Swing over bed	mm	800
Swing over cross slide	mm	520
Distance between centers	mm	1000 - 10000
Guideway width	mm	550
Max. load capacity	T	3
Spindle bore	mm	105
Spindle bore taper	-	Metric φ120/MT6
Spindle nose type	-	C11
Spindle speed steps	-	VF. 3 steps	HYD. 4 steps
Chuck	mm	φ315 3-jaw manual
Turret/tool post	-	Electric 4 position
Tool shank size	mm	32*32
X axis travel	mm	420
Z axis travel	mm	750 - 9750
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	250
Main spindle motor	kw	11
Coolant pump motor	kw	0.25
Overall dimension(W*H)	mm	1850*1900
Overall dimension(L)	mm	3200 - 13200
Machine weight	T	4.5 - 10.5

Machine Standard Details

ONE PIECE CASTING High stable one piece casting,Max load weight 3T.	QUENCHING GUIDE RAIL High frequency quenching guide rail, guide rail hardness over HRC60, 550mm width guide.
SPINDLE SPEED Standard VF.3 steps, HYD.4 steps as optional	SPINDLE BORESpindle bore 105mm
CONTROLSYSTEM Standard: GSK980 controller with hand pulse	PRECISION CHUCK Standard:315mm 3-jaw manual chuck
TOOL POST/TURRET Standard:4 position Electric tool post	TAILSOCKStandard:Manual tailstock
STEADY REST DBC above 3m machine, 1pcs steady rest as standard	LUBRICATION SYSTEM Automatic centralized lubrication device.
ELECTRICAL COMPONENTSStandard:Schneiderelectrical components	TESTING Each machine passed Renishaw laser interferometer testing

Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has : More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC etc.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
