Product Details
Product Description
Product Description

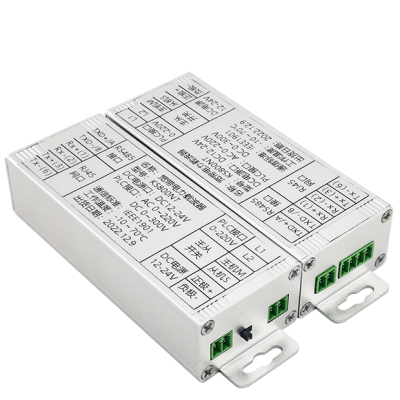

High Definition-Power Line Communication KS800N
Hundred megabit type
Products Features:
●Hundred megabit bandwidth，highly versatile，ultra-small volume,industrial grade standards.
●Built-in LDPC error correction codec，AES-128bit data encryption,encrypted and transparent dissemination of data.
●It is based on IEEE P1901，adapt OFDM modulation and demodulation,technology，power line carrier
communication equipment compliant with the European Union EN-50561 standard specification.
●The carrier supports bus, star, tree, and hybrid network topologies structure.
●Set up the masterslave machine to ensure that the power supply is matched and the wiring is correct before powering on.
●Do not operate energized, do not touch the output terminal directly, do not connect the output terminal short or connected
to the housing.
Technical data:
Classification
| Technical indicators
|
Power supply
| DC 12-48V
|
PLC Signal port
| NS type: DC12-48V
| NT type: AC 0-220V or DC 0-400V
|
Any two-core cables, power line, sliptouch cord, slip ring cables, etc.
|
Modulation type
| OFDM modulation type
|
Carrier frequency
| 2～28 MHz
|
Ethernet bandwidth
| 10M/100Mbps self-adaption
|
Transmission distance
| The maximum transmission distance is 500 metre(ordinary power line)，
class 10 relay can reach to 3-5 kilometre
|
| RS485 | Support Modbus RTU agreement，baud rate configurable1200~115200bps |
Data delay
| Within 10ms
|
Packet loss probability
| Less than 0.1%
|
Overall power
consumption
| ≤3W
|
Standard agreement
| TCP/IP，UDP，Profinet，Home Plug，Home PlugAV，Modbus-TCP，
IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1，
IEEE 1900，IEEE 1901etc
|
Way of encryption
| AES-128bit
|
Multicast
| Support IGMP multicast protocols,the maximum number of nodes is 128
|
Exterior dimensions
| Size：120*40*25mm （L*W*H）
Weight：200g
Install：Earhook
|
Environmental
requirement
| Operating temperature：-40℃～85℃
Operating humidity：20%-95%（No condensation）
Storage temperature：-40℃～85℃
|
Working time
| Industrial grade, supports 7*24 hours all-weather work
|
Exterior dimensions:
PLC KS800N’s length, width and height are：120x40x25mm(with fixed ear)，
fixed hole spacing is 111mm，fix with M4 screw.
Applications:
It has been widely used in various industries， including inspection robots, slide robots,
pipeline robots, underwater robots, intelligent charging piles, intelligent street lighting,
wind and solar energy new energy and other fields.
>>
