Reliable Saddle Type Precision Rotary Table Surface Grinder Eta-200nc Estop

Product Description

Product Description
Es Top: Professional made the excellent machine.
ESTOPCNC is a manufacturer, distributor and exporter of industrial master machinery and CNC machine tools in China. The company is headquartered in Dongguan city, Guangdong Province. Company by a group of in Taiwan and mainland China engaged in more than 20 years of CNC milling machine manufacturing engineers, maintenance technicians, relying on the powerful world factory location advantage and talent advantage, constantly promote the shift to China smart upgrade, made in China to intelligent manufacturing in China. Cost-effective milling machine, grinding machine, gantry processing center and other CNC machinery and equipment to the international market.
ESTOPCNC in the form of diversified, intelligent response to changing market environment, from the introduction of advanced technology, digestion and absorption innovation, to fully replace imported Japan, Taiwan machine tools, in domestic application, and after ten years of precipitation and accumulation, reverse exports to Japan, Taiwan province, North America, Europe and southeast Asia and the Middle East countries, combined with professional management operation system and professional international after-sales service team, won the user's praise and affirmation.
We will continue to bring you high quality and a variety of machining center equipment. Single-minded, do a good job of machinery, good service hexahedral processing, that is, the perfect quality and excellent global after-sales service!
Product Description
Dongguan ESTOP Machinery Co., Ltd.

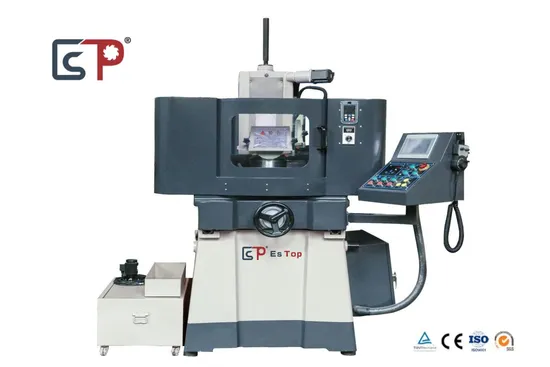

Model: ETA-200NC
Features and applications:
1. The guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy.

	2. The spindle independent design to add one more bearing, increase a bearing model, both heavy rough 1, the guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy. grinding can also be finished.
3. The use of high-quality motor, V3 level vibration, low noise, small vibration, reliable quality.

4. The main castings of the machine tool are made of advanced cast iron. After annealing treatment, vibration aging treatment and removal of the internal stress of the castings, the stability of the castings is greatly improved and it is not easy to deform.
Product Parameters
Specification:

Main item	Saddle Type Rotary Surface Grinding machine	Unit	ETA-200
Worktable	Electromagnet table size(x*y)	mm	Φ 200
	Front/back Y-axis travel	mm	220
	Max center of wheel to table	mm	365
	Worktable Maximum loading copacity	kg	100
In front and back Feed	Front/back Hand wheel feed degree scale	mm	0.02/5
	Front/back Automatic feed	mm 0.1-8
	Front/back(50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	180 x 31.75 x 12.5
	(50HZ/60HZ) Grinding wheel speed	R.P.M	2850/3360
Z-axis Up and down	Up/down Hand wheel feed degree scale	mm 0.005/1
	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P 2x2
	Up and down, The Z-axis motor	W	750
	Cooling motor	W	40
	In front and back servo, The Y axis motor	W	750
Machine Size	Machine Tool Profile size L*W*H	mm	1500 x 1450 x 1820
	Weight	kg	≈1000

These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
1. High precision spindle and spindle motor with lower vibration and noise
- Durable and suitable for precision grinding
2. Intensive research planning and manuacture by high-elasticity structure
- Excellent durability and heavy grinding available
3. 4-point suspension mode cross travel guide way
We can customize models according to customer requirements, more Non-standard series please consult the manufacturer.
Our Advantages
Certifications
Packaging & Shipping
FAQ
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company 2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.
