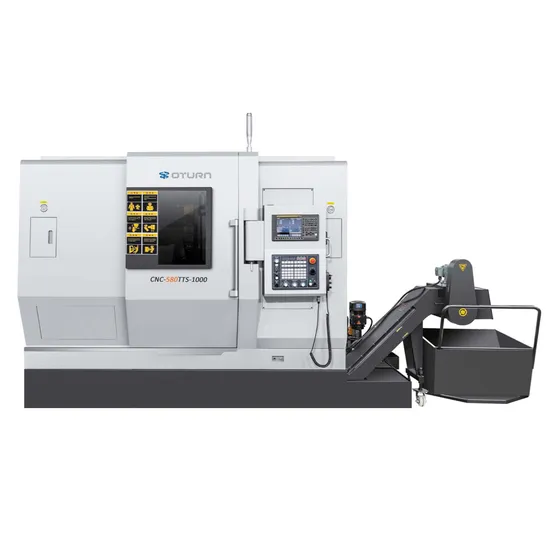

High Precision Automatic Slant CNC Lathe Machine Dual Twin Spindle CNC Turret Turning Center with Live Tooling

Product Description

Product Description
High rigidity, heavy cutting, and high stability. It adopts an integral cast inclined bed, a 45° inclined bed structure, and a thick reinforced rib design to minimize distortion and thermal deformation.
4-axis linkage simultaneous machining, dual-spindle dual-turret design, under the control of the multi-axis multi-channel CNC system and post-processing program, can not only complete 4-axis linkage processing, but also realize automatic U-turn processing of parts and simultaneous rough and finish turning , with a series of multi-functions such as two spindle processes that do not interfere with each other.
2 sets of feed axes. The highest configuration of this series has two sets of X, Y, and Z feed axes. Two sets of Y axes are hard-rail orthogonal Y-axis structures, providing the machine tool with sufficient milling capabilities.
Low resonance and high precision. When the equipment is processing in both directions at the same time, the maximum resonance value caused is less than 5%, and its performance is particularly outstanding. The static docking accuracy of the dual spindles can reach 0.005mm, and the synchronous docking accuracy can reach 0.01mm, which can meet most customer needs.
Modularization and flexible matching. In order to meet the needs of the market, the structure also has the characteristics of modular design, which can realize flexible structural matching according to needs.
Opposing dual spindles, the left and right sides can be processed at the same time, greatly shortening the processing time.
The upper and lower turrets are equipped with milling functions (the upper turret is equipped with a Y-axis) and can install up to 48 tools.
It can handle everything from small batches of multiple varieties to large-scale production. All processes can be completed with one clamping. Product Parameters

Item		Specification
Bed	The bed and base are made of high-quality cast iron, and the bed is slanted at 30°.
Processing range	Maximum rotation diameter of bed	600mm
	Maximum processing diameter of discs	260mm
	Maximum processing diameter of the carriage	260mm
	Maximum processing length of bar	1000mm
	Maximum rod hole diameter	Main: Φ65mm / Auxiliary: Φ45mm (Chuck: Φ52mm)
Travel Feed	Maximum travel of X1/X2 axis	Diameter 480 / 390mm / Screw data 240 / 195mm
	Maximum travel of Z1/Z2/Z3 axis	1000mm
	Y-axis maximum travel	±75mm
	Chuck clearance	1000mm
	X1/X2/Z1/Z2/Z3/Y1/Y2 axis rapid movement rate	24m/min
	X1/X2/Z1/Z2/Z3/Y1/Y2 screw diameter/pitch	40/10mm
	X1/X2/Z1/Z2/Z3 linear guide width	45mm
	X1/X2 axis servo motor	Β22 / β12 (brake)
	Z1/Z2/Z3 axis servo motor	Β22/β22/β22
	Y1/Y2 axis servo motor	β12 (brake)
	Servo turret motor	3N.m
	Power head motor	β22
Precision	X1/X2/Z1/Z2/Z3/Y1/Y2 axis positioning accuracy	±0.003/300mm
	X1/X2/Z1/Z2/Z3/Y1/Y2 axis repeat accuracy	±0.003/300mm
Spindle	Spindle nose type	Main: A2-6 / Auxiliary: A2-5
	Spindle through hole diameter	Main: Φ79mm / Auxiliary: Φ56mm
	Spindle maximum speed	Main: 4000 rpm / Auxiliary: 4500 rpm
	Spindle servo motor power	Main: 11/15KW / Auxiliary: 17.5KW
	Hydraulic clamping system	8 inches / 8 inches (chuck)
Power head	90° power head (main/auxiliary turret)	ER40 / 3000 rpm
	0° power head (main/auxiliary turret)	ER40 / 3000 rpm
Turret	Turret specifications (main/auxiliary turret)	BMT65/12 stations
	Cutter size (main/auxiliary turret)	380mm
	Tool holder specifications (main/auxiliary turret)	25×25
	Boring tool holder (main/auxiliary turret)	Φ40mm
Other	Total capacitance	60KW
	Machine tool net weight	9000Kg
	Machine size (length*width*height)	6000×2800×2400mm

Products Configurations

Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
