Automatic PP Block Bottom Valve Bag Making Machine Bag Machine for PP Non-Woven Valve Bag

Product Description

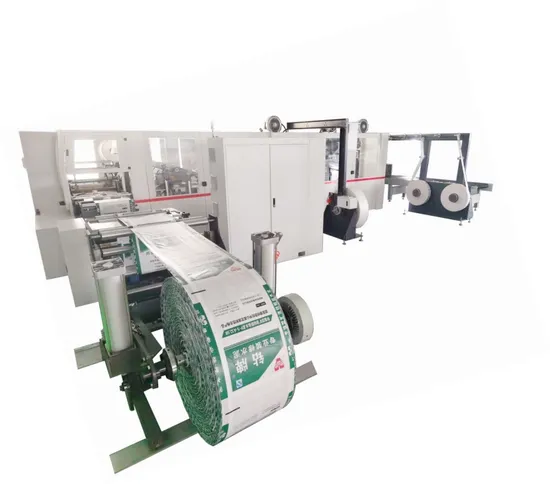

Product Description Automatic Center sealing bag making machine rice cement feed packing bag The machine is valve bag Making Machinery,which maximum speed is 120pcs/min. Material: PP, Non woven The machine adopts imported servo motor, pneumatic parts and electrical components are from international well-known brands, good quality, durable. Valve pockets are mainly used for packaging food powder, chemical powder, fertilizer, synthetic materials, explosives, food, salt, minerals and other powdery or granular solid materials Detailed Photos
Product Parameters

Model	OR-140
Voltage	AC 380V/50Hz
Power	85kw
Cold water demand	0.4Mpa,1M3/h
air compression	0.7MPa 120M 3/h
material	pp or non-woven fabric
Base fabric weight	55-80gsm
Lamination film weight	15-30gsm
Production speed	110-120 Bags/hour

Specification range of woven bags	Bag width: 350-600mm Bag length: 400-910mm Bottom width: 80-160mm
Valve plate specification range	Cutting length: 80-200mm Cutting length of outer valve port: 80-300mm Width: 170-330mm
Specification range of lining pages and bottom pages	Cutting length: 230-480mm Width: 75-160mm
Unwinding part	Maximum material roller diameter: 1500mm Maximum material width: 600mm Maximum material weight: 1.2 tons Air shaft diameter: 200mm
Valve unwinding part	Maximum material roller diameter: 1100mm Maximum material width:370mm Maximum material weight: 300KG Air expansion shaft diameter: 200mm
Lining and bottom page unwinding part	Maximum material roller diameter: 1100mm Maximum material width: 175mm Maximum material weight: 140KG Air expansion shaft diameter: 200mm
Machine packaging weight	12tons
Machine packaging size(L*W*H)	11000*8000*3000mm
