Forming Machinery Paper Bowl Making Machine

Product Description

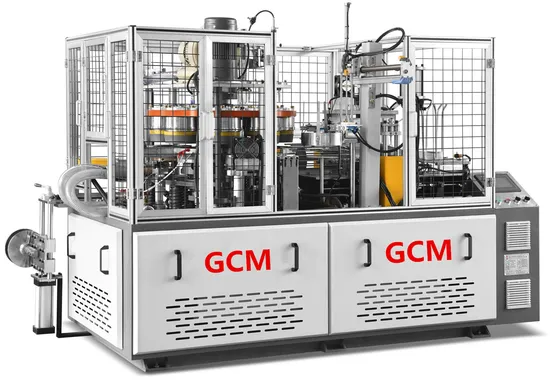

B600 Paper Bowl Forming Machine
Product Description B600, an upgraded single-rotary disc type low mold stroke paper bowl machine based on Z35 (45-60pcs/min), achieves a faster bowl making speed of 60-80pcs/min which benefits from the low mold stroke and the design of highly integrated working station, especially more suitable for paper bowls of a single specification due to the inconvenience of molds replacement. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.
Bowl wall and the bottom are sealed with LEISTER bottom heaters (Optional) and EVER GREEN ultrasonic side welder (Optional) imported from Switzerland and Taiwan. The whole bowl making process is controlled and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.
Detailed Photos
Product Parameters

	B600	B600M	B600L
Paper bowls specification	20-35oz T:55-150mm H:35-100mm B:50-128mm	T:150-165mm H:50-100mm B:128-145mm	T:165-220mm H:100-170mm B:145-185mm
Paper Specification	150-350GSM single/double PE coated paper
Production capacity	70-80pcs/min	55-65csp/min	45-55pcs/min
Voltage	220V/380V 50/60HZ 3Phases
Total Power	14KW	16KW	18KW
Air supply requirement	Air pressure:0.5-0.8Mpa, Air out-put: 0.4cbm/minute
Dimensions	2550×1550×1900mm	2650×1600×1900mm	2950×1700×2150mm

Certifications
Packaging & Shipping

After Sales Service Pre-sales and After-sales ServicePre-sales servicea.Provide products and related consultation.b.Free provision of paper cup samples (excluding freight).c.Customers can visit the factory in person to visit the machine.After-sales service:a.Paper cup machine warranty: 1 year.b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period.c.We supply the consumable spare parts for free for one year use.
d.Professional after-sales team, video demonstration guidance.
e.Provide instruction manuals and periodic maintenance manuals.

---
