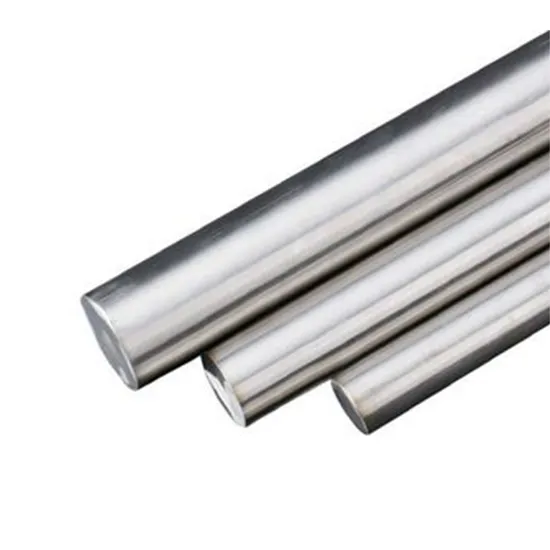

Lork Supply ASTM F1684/Uns K93600 Rod for Wind Turbines Invar 36 Semiconductor Equipment Precision Alloy Round Bar

Product Description

Product Description
Introduction LORK is a alloy manufacturer with 20 years of manufacturing experience.

Common Trade Names: Invar 36, Nilo 6, Pernifer 6
Invar 36 UNS K93600 UNS K93603 1.3912 Ni36 Nickel Alloy

Invar 36 is a nickel-iron, low expansion alloy that contains 36% nickel and possesses a rate of thermal expansion approximately one-tenth that of carbon steel. Alloy 36 maintains nearly constant dimensions over the range of normal atmospheric temperatures, and has a low coefficient of expansion from cryogenic temperatures to about 500°F. This nickel iron alloy is tough, versatile and retains good strength at cryogenic temperatures.

Invar 36 (also known as Nilo, Nilvar, Permalloy D, FeNi36, and 64FeNi) is an nickel-iron alloy notable for its extremely low thermal expansion. Primary uses for Invar include laser and cryogenic components, tooling, dies, and any other application requiring high dimensional stability. Generally immediately available in most volumes, AE Alloys are available in machined shapes such as bar, ingot, ribbon, wire, shot, sheet, and foil. Ultra high purity and high purity forms also include metal powder, submicron powder and nanoscale, targets for thin film deposition, and pellets for chemical vapor deposition (CVD) and physical vapor deposition (PVD) applications. Please contact us above for information on specifications, lead time and pricing.
Precision Alloy Invar 36 Applications
As direct Invar 36 suppliers, ANTON distributes high-grade Invar 36 material for a wide range of industries where dimensional changes due to temperature variation must be minimized, some of the applications where UNS K93600 is utilized include:▪ Tooling and Dies for Aerospace Composite▪ ToolingThermoset Epoxy Systems▪ Resin Transfer Molded Tools▪ Cryogenic Components and Piping▪ Laser Components▪ Liquified Natural Gas (LNG)Marine fixtures and fastenersProduction and Storage Equipment▪ LNG Tanker Membranes▪ Marine Components▪ Wind Turbines Precision Alloy Invar 36 Specifications

Grade	UNS	DIN
Kovar 4j36	K93600	W. Nr.1.3912,Ni36

Precision Alloy Invar 36 Chemical Composition

Element	Content (%)
C	0.15max
Mn	0.6 max
P	0.006 max
S	0.004 max
Si	0.4 max
Cr	0.25 max
Ni	36.0
Co	0.5 max
Fe	balance

Precision Alloy Invar 36 Mechanical Properties

Temperature		Yield Strength		Tensile Strength		Elongation	Reduction
°C	°F	MPa	Psi	MPa	Psi	2" %	%
20	68	240	35.0	490	71.0	42	70

Available Sizes And Specifications

Invar 36 available sizes and specifications
Grade	Invar 36
Nickel plate	Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm
Nickel strip/ nickel foil	Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm
Nickel coil	Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm
Nickel pipe	Outside diameter: 6mm - 1219mm Thickness: 0.5mm - 100mm
Nickel Capillary Pipe	Outside diameter: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm
Nickel bar	Diameter: Ф4mm - Ф600mm
Nickel wire rod	Diameter:Ф0.01mm - Ф6mm

Detection
Processing
Packaging & Shipping
Company Profile
FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .

---
