Compact V Bank HEPA Air Filter, H13, H14, 99.97%, 99.99%, Single Header HEPA Filter, Flange and Box Type

Product Description

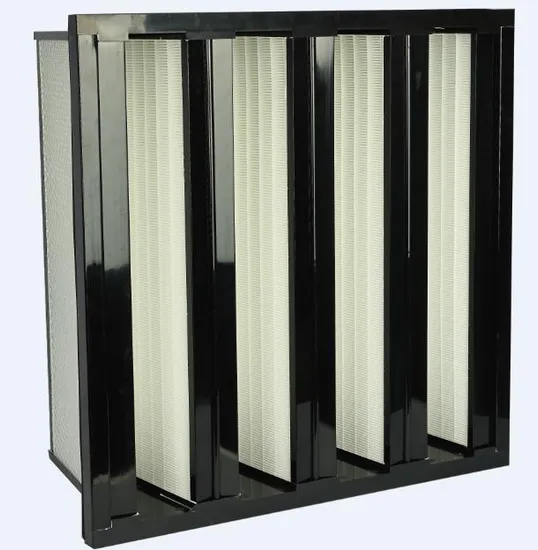

Metal frame V-bank Mini-pleat HEPA Filter (flange/box type)
Mainly products:Pre~filter Media;Spraybooth Ceiling Filter;Paint Stop/Floor Filter;Cell Pockets;Activated Carbon Filter Media;High Temperature Fire~proof Media;Pre/medium~efficiency filter media;Prefilter;Pre Efficiency Pocket Filter;Medium Efficiency Pocket Filter;Heat~Resistance Filter;Medium/Sub~HEPA Filter;HEPA Filter;Chemical Filter;Paint Mist Filter;Purification equipment;Activated Carbon Nonwoven;Activated Carbon Filter..
Product introduction V-bank Mini-pleat/High Air Flow Combined HEPA Filter (flange/box type)
Application: Applied to large air volume ventilation systems, filtration systems such as pharmaceutical, food, hospitals, clean rooms, etc., it can be used as terminal-filtration of medium and high-efficiency filtration system or the pre-filtration of super-efficient filtration system;
Features: It is a kind of deep loading hih efficiency filter,suitable for permanent or impermanent airflow system.it's constructed to V-type by multiple mini-pleat media,installed in galvanized box or ABS plastic box.Compared with the common filters,it ideally enlarges the filter area,ensuring low pressure loss and low energy consumption to save in the present installation system.
Filter Media:PP Paper,fiberglass paper
Frame:Polypropylene(black/blue),galvanized,aluminum alloy
Specification:

Type	Dimensions(mm)	Rated Air flow(m³/h)	Structure type	Initial Resistance(Pa)
				F7	F9	H10	H12	H13	H14
SHW-HV	287*592*292	1200	flange type	80	100	150	220	250	280
	592*592*292	2700		80	100	150	220	250	280
	305*610*292	1400	box type	80	100	150	220	250	280
	610*610*292	3000		80	100	150	220	250	280

Company profiles
Founded in 1995,Guangzhou Sun Holy Wind Air Cleaning Products Co.,Ltd is a global comprehensive manufacturer of synthetic fiber air filter materaials,filters and customized filter units. Our main products are Spraybooth Ceiling Filter,Paint Stop,Cell Pockets and Pre/Medium/High-efficiency filters.

About us
FAQ
1. Factory or trading company?
We are a manufacturer for air filter in China since 1995
2.Production time
5-7 days.We have production lines for filter media with the most advanced equipments and stable workers to control the quality and capacity.
3.Free Sample
Free sample will be sent on request in 2 days for your testing
4.OEM made
OEM is warmly welcomed.
5.Payment terms
T/T,L/C,etc.

---
