10′′20′′30′′40′′ 304 316L Ss Liquid Filtration Stainless Steel Sanitary Water Filter Housing with PP/Pes/PTFE Filter Cartridge

Product Description

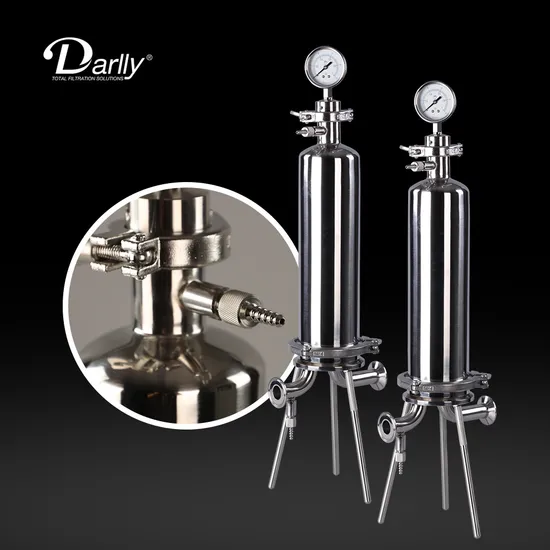

Single-round Sanitary Liquid Filter Housing is designed to meet the sanitary requirements. It adopts sanitary pipe fittings with crevice-free welding and sanitary design. It is easy to clean and disassemble, suitable for small flow filtration in low and medium pressure conditions. It is widely used in pharmaceutical, food and beverage industries.
Applications
- Pharmaceuticals: filtration of injections, antibiotics and other biological products
- Food and beverage: filtration of alcohol, beverage and drinking water etc.
- Petrochemical industry: filtration of oilfield water, organic solvents, acid and alkaline liquids etc.
- Microelectronics: pre-filtration of high-purity water
Features
- Ultra-high polishing level, internal: Ra≤0.3μm, external: Ra≤ 0.4μm
- It meets GMP standards, adopts crevice-free welding and sanitary design, easy to clean, no residual liquids
- Vent/Drain Valve: the threaded sleeve is separated from stepped hose barb, so the connection tube will not rotate when venting or draining
- Body connection adopts strengthened clamp, maximum operating pressure can reach 1.0MPa
- Light in size, easy to install and disassemble, designed for low volume liquid filtration which can be used in pharmaceuticals etc.
- The housing leg adopts strengthened thread to make it have a longer service life, adjustable nut on the leg can adjust filter length to make it more convenient to use
- Suitable for CIP and SIP
Product Specification

Material of Constructions	Filter Shell	304, 316L
	Drain/Vent Valve	304, 316L
	Tri-clamp	304
	Stabilizer Blade	304
	O-Ring	Silicone, FKM, EPDM
Parameters	Design Pressure Option	0.6MPa (6 bar); 1.0MPa (10bar)
	Maximum Operation Temperature	150ºC
	Surface Finish	Passivated; Electropolished; Mechanical polishing
	Polishing Rating	Internal: Ra ≤ 0.3μm; External: Ra ≤ 0.4μm
	Shell Connection	Tri-clamp
	Inlet & Outlet (N1, N2)	Tri-clamp / flange
	Vent / Drain Valve (N3, N5)	Inner bole 4mm, connect with 8mm pipe
	Pressure Gauge (N4)	Tri-clamp 1.5"

Dimensions
Ordering Information
