Psd Top Dishcharge Bag Lifting Stainless Steel Centrifuges

Product Description

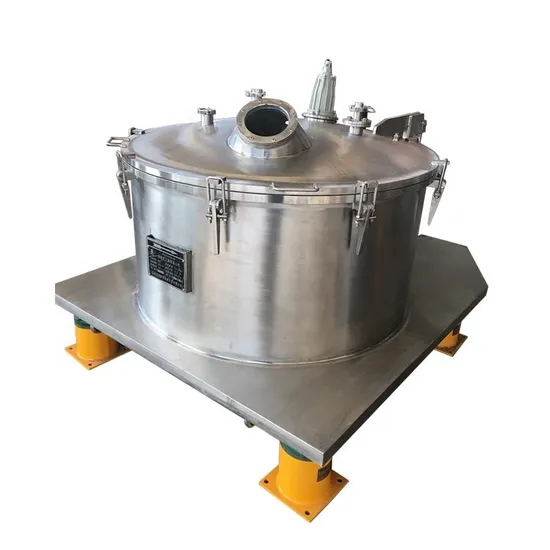

Plate Bag Lifting Top Discharge Centrifuge/ Chemical Centrifuge With Adjustable Speed
Description:
PPBL series plate bag lifting top discharge centrifuges are filter equipment with hermetic closure procedure task, intermittent operation and hanging bag off-site discharge.
Working principles:
1) This model of basket centrifuge is airtight equipment
2) Batch operation and hanged bag unloading at alien land,speed adjustable
3) The slurry is fed from the upper into the rotary drum
4) Under the centrifugal force function, the liquid passes through the filtering medium and discharges out of the machine
5) The solid is left in the rotary drum
6) After the machine is stopped, the filtering bag and liquid-block plate are hanged out and carried to the fixed site to unload the material
Applications:
This type of basket centrifuge is suitable for separating suspensions with solid particles larger than 0.01mm
Especially suitable for filtering poisonous and inflammable materials Widely used in chemical, pharmaceutical, food, light industry and other trades Most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders, etc.
Specifications:

Type	Drum					Power (kw)	Weight (kg)	Overall size (L × W × H) (mm)
	Diameter (mm)	Volume (L)	Capacity (kg)	Speed (rpm)	G-force
PSD-155	800	115	155	1500	1008	7.5	1800	1800 × 1050 × 1140
PSD-230	1000	170	230	1200	806	11	2800	2030 × 1300 × 1220
PSD-340	1200	250	340	800	431	11	3200	2300 × 1500 × 1350
PSD-400	1250	280	400	950	631	18.5	4200	2350 × 1550 × 1370
PSL-400-NA	1250	400	540	950	631	22	5000	2350 × 1550 × 1520
PSL-650	1500	500	650	850	607	30	5200	2900 × 1900 × 1575
PSD-650-NA	1500	600	800	850	607	37	5700	2900 × 1900 × 1800

Competitive Advantages:
Large capacity, high efficiency, simple operation, fast unloading, good guarding function, clean surrounding, low labor strength, etc.

Guarantee:
SHENZHOU Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers

---
