Full Automatic Toilet Paper Roll Core Making Machine

Product Description

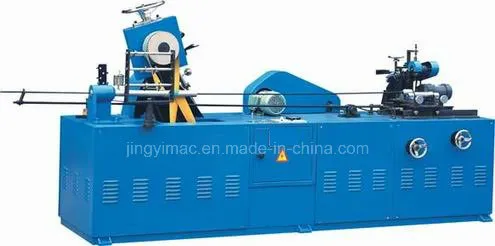

Full Automatic Toilet Paper Roll Core Making Machine
Functions and features: this machine adopts the principle of integrated technology between electromagnetic iron and lever, to materialize auto core cutting synchronously without stop machine. It possesses festures, such as high speed, auto drying, tight rewinding and so on. it's the preferee equipment for producing core for toilet paper, plastic PE film and N.W. With safety device, such as safety guard door, emergency stop and so on. Most of the parts are precisely processed by numerical-control machine, the key mechanical parts are under CNC processing; while the main outsourcing parts are famous brand. Main technical paramet:

Stable speed	15-18 m / min
Kraft paper width	50~70mm
Paper Tube diameter	30mm~60mm(can be customized)
Paper tube layers	2 ~ 5 layers(choose by customer)
Kraft paper gsm	200-400 gsm
Roll core Length	variable
Defect rate	≤2%
Voltage	380V 50HZ
Power	3.5KW
Overall Size	3500*1000*1600
Weight	1500Kg

About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
