8 Axises Double Spindle Turning Milling Machine Center CNC Lathe Turning Center

US$100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TMC25S2M2T2Y
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Turning Center
Used as
Turning Milling Machine
Another Name
Turning Milling Center
Spindle Spped
30-4000
Mx. Bar Capacity
76
Spindle
Double Spindle
Can Be
CNC Lathe
Axis Number
8
Eight Axis
X1,Y,Z1,X2,Z2,W,C1,C2
Transport Package
Export Packing
Specification
Turning Center with Double Spindle
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
50 Units/Months

Product Description

8 axises Double Spindle Turning Milling Machine Center Cnc Lathe Turning Center

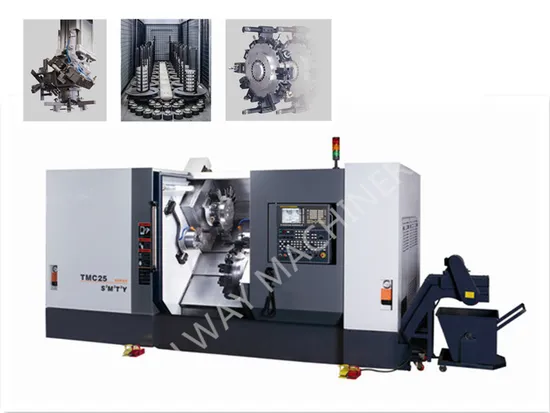

TMC25S2M2T2Y Turning Center with Double Spindle Product introduction and function
It use variety of control technologies, included self-developed pneumatic, hydraulic, concealed electric spindle, concealed high-power powered turret, automatic tool measuring and adjusting (Optional), temperature control, collision protection. Combined Turning-Milling process and Intelligent control, also intergrated mechanic, electric, pneumatic and hydraulic.
It has six feeding axis and two C-axis, totally eight axis, X1,Y,Z1,X2,Z2,W,C1,C2, Turning, Milling, Drilling, Boring, Tapping, Reaming can be done in one process. C-axis can be divided into 0.001degree, suit for processing Cam, Spiral flute with complex shape.
item unit TMC25E TMC25SMTY TMC25S2M2T2Y
Max. swing over bed(disc/shaft) mm φ700/φ385 φ800/φ385 φ360/φ360
Max. cutting dia.(disc/shaft) mm φ460/φ385 φ460/φ385 φ360/φ360
Chuck and tailstock(or sub chuck) distance mm 105-655 85-865 20-820
Max. cutting length mm 540 720 720
Max. bar capacity mm φ76 φ76 φ76
stroke X1 mm 245 245 245
Y mm × ±50 ±50
Z1 mm 570 800 800
X2 mm × × 210
Z2 mm × × 800
W(tailstock/sub spindle) mm 550 780 800
Rapid traveling X1/Z1 m/min 30 30 30
X2/Z2 m/min × × 30
Y m/min × 10 10
W m/min 15 15 15
guidway rolling rolling rolling
ballscrew X1/X2 mm φ32×10 φ32×10 φ32×10
Y mm × φ32×5 φ32×5
Z1/Z2 mm φ40×12 φ40×12 φ40×12
W mm × φ40×10 φ40×12
spindle speed r/min 30~4000 30~4000 30~4000
Spindle nose A2-8 A2-8 A2-8
Spindle in taper metric φ100 φ100 φ100
Bearing
bore		 front mm φ140 φ140 φ140
end mm φ120 φ120 φ120
Main motor power kw 15/22 15/22 15/22
Chuck size(10″) mm φ254 φ254 φ254
tailstock Bore taper morse MT-5 MT-5 MT-5
Feeding hydraulic servo servo
Turret Tool number 12 12 12
Tuning / boring tool mm 25/φ40 25/φ40 25/φ40
Position accuracy ″ ±10 ±10 ±10
Reposition accuracy ″ ±3 ±3 ±3
Turret motor power kw 5.5/7.5 5.5/7.5 5.5/7.5
Driving tool holder BMT65 BMT65 BMT65
Tool holder speed r/min 30~4000 30~4000 30~4000
Machine Position accuracy mm ±0.008 ±0.008 ±0.008
Machine Reposition accuracy mm ±0.004 ±0.004 ±0.004
Weight kg 7,000 9,000 11,000
Overall dimension(L×W×H,without chip conveyor) mm 3500×2000×1950 3850×2250×2400 4050×2400×2400
