Product Details
Product Description
Product Description
Detailed Product Description
Type:| Mitsubishi MOTOR | Brand Name:Mitsubishi |
Model Number:| HC-SFS121 | Rated Output Power:1.2kw. |
Rated Speed::| 1000r/min | Protection Level::IP65 (IP67). |
High Light:| ac servo motor,electric servo motor |
Categories| Industrial Servo Motor |
| Brand Name: | Mitsubishi |
| Model Number: | HC-SFS121 |
| Certification: | CE |
| Place Of Origin: | Japan |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T / Paypal |
| Supply Ability: | 50 |
| Delivery Time: | In Stock |
| Packaging Details: | New Original Box |
| Category: | Industiral Servo Motor |
| Model: | HC-SFS121 |
| Rated Output Power: | 1.2Kw |
| Rated Speed: | 1000r/Min |
| Series: | HF-SFS |
| Brand: | Mitsubishi |

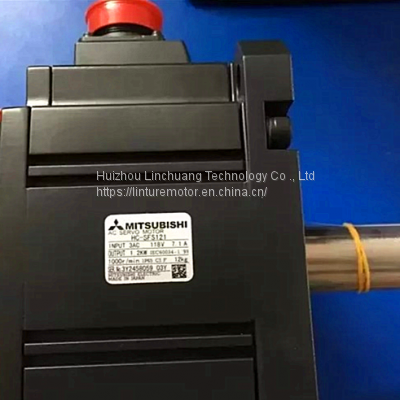

MITSUBISHI Melservo HC-SFS series HC-SFS121 Medium inertia power motor HC-SFS121K Japan
MITSUBISHI HC-SFS121 Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS121
Motor series: medium inertia, medium power.
Rated output power: 1.2kw.
Rated speed: 1000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.6kw.
SSCNET interface.
Voltage: 3 phase AC400V.
Specifications of HC-SFS
| Motor series | Rated speed
(maximum speed)
(r/min) | Rated output
(kW) | Protection
level | Features | Application
examples |
| HC-SFS series | 1000
1500 : 0.85kW
1200 : 1.2~3kW | 4 types
0.85, 1.2,
2.0, 3.0 | IP65 | Medium inertia
Three models, from
low to high-speed,
are available for
various applications | ● Material handling
systems
● Robots
● X-Y tables |
2000
3000 : 0.5~1.5 kW
2500 : 2, 3.5 kW
2000 : 5, 7kW | 14 types
0.5, 1.0, 1.5, 2.0,
3.5, 5.0, 7.0
0.5, 1.0, 1.5, 2.0,
3.5, 5.0, 7.0 | IP65 |
3000
(3000) | 5 types
0.5, 1.0,
1.5, 2.0,
3.5 | IP65 |
Features
High Functionality, High Performance
1.High-resolution Encoder 131072p/rev (17bit)
• The inclusion of a high-resolution encoder ensures high performance and stability at low speeds.
• Motor sizes are the same as previous products and wiring is compatible.
2.High-performance CPU Incorporated for Improved Response
• The application of a high-performance CPU has enhanced response significantly. Speed loop frequency response is im-proved to 550Hz or more.
The MR-J2-Super series are the best choice for use in high-speed positioning applications.
Absolute encoder is Standard Equipment
• The absolute positioning method, which does not require home position return, can be used by adding a battery to the servo amplifier. The servo motor does not need to be replaced.
3.SSCNET, high-speed serial bus compatible: B type
• A completely synchronized system can be made using SSCNET utilizing high-speed serial communication with cycle times of up to 0.888ms between controller and amplifier. Such a system will provide high levels of reliability with high levels of performance.
• As the SSCNET bus system is used to connect the servo system together, the consolidated management features such as servo amplifier parameter settings and data gathering are all present in the motion controller.
• A dedicated cable is used for the SSCNET system that simply connects the amplifiers and controllers. This simple connection method reduces wiring time and also helps to prevent noise (due to the serial data transfer when using SSCNET).
• The command frequency is not limited even when using the high resolution encoders standard on the MELSERVO-J2-Super series products.
• SSCNET is a completely synchronized network, so synchronized control and synchronized starting for advanced interpolation etc. can all be carried out.
• An absolute system can be made by simply adding a battery to the Servo amplifier.
• More than 1,000,000 SSCNET amplifier units of this highly reliable network are in use.
>>
