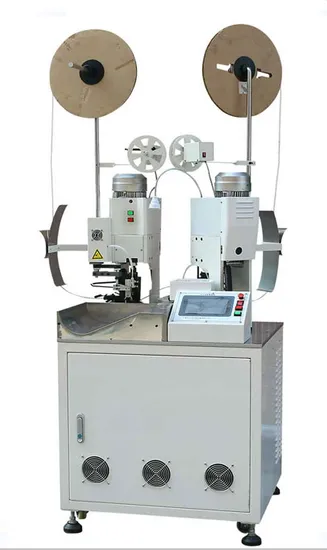

Fully Automatic Wire Stripping Machine Double Head Crimping and Twisting Machine X-2400

Product Description

Fully automatic Double head crimping and twisting machine X-2400; Both ends terminal crimping machine manufacturer


Detailed Photos

Product Description

ype	Automatic computer single head terminal crimping machine X-2400
Power	AC220V 50 / 60HZ ( single phase ) or 110V ,60HZ
Function	Wire cutting, both side stripping, single side stripping, single side crimping.
Capacity	4500 pcs/hour (within 300mm length)
Speed	>3000pcs/hours
Wire Processing range	AWG # 30 - AWG # 14( it can customized max. 6.0mm2)
Wire Length	45mm-8meter
Cutting length	45mm-9999mm.
Cutting fine	Change range:1mm+ below cutting length 0.1%)
stripping length	1.5mm-10mm
Air pressure	0.5Mpa(5kgf/cm) About 200NL/Min
Detection device	It will alarm downtime when appears lack of abnormal, insufficient air pressure.
Pressure capacity	19600N(2T)
Twisting length	AWG # 20-AWG # 30 (4mm-8mm)
Machine size	530 * 530 * 1480(mm)
Machine weight	About 300kg

It can apply terminal model
Relate Machines
Company Profile
Our Advantages
After Sales Service We Provide

Best products and factory price. On-time delivery and the shortest delivery time. 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery. OEM and customized service. User manuals will go with relative machines.
Service

QC: All products will be checked before delivery. Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers. Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. Operation Guidance: If you have any problem with operation, please feel free to contact us.

---
