Hand Held Thh-18 Long Range Thermal Imager Infrared Thermal Camera Thermography Scanner Use for Medicine Archaeology

Product Description

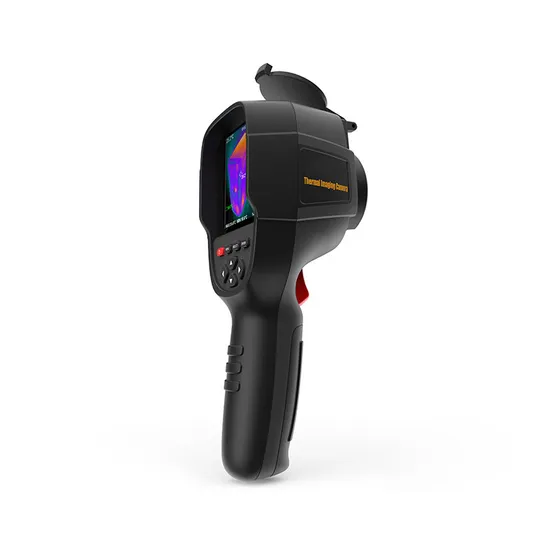

Hand held THH-18 long range thermal imager infrared thermal camera thermography scanner use for medicine archaeology
Description:
This product is an infrared camera that integrates surface temperature measurement and real-time thermal image. The traditional infrared thermometer needs to measure every component one by one while it is unnecessary for infrared imaging cameras, thus saving time. The potential
problems may be displayed on the color display screen clearly. Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object.
To increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.
With a small volume, the product is easy to operate and has a strong function. it is the ideal selection for electric power, electronic manufacturing, Industrial inspection, and other fields.
Advantages:
--3.2'' full-color screen, allows for detailed showing of infrared generated images;
--220x160 resolution and 0.3 million pixels visible image resolution, high definition of images;
--20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
--5 kinds of the palette for choice: rainbow, iron red, cold color, black & white and white & black;
--automatic setting: 5 minutes/20 minutes/ not power off automatically;
--built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
--wide application at fire-fighting, archaeology, traffic, farming, electronic manufacture, and other fields;
--separate button for a specific function, which is quite easy for you to turn it on or off, delete or check pictures;
--mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
--ergonomic handle, which can be used and held comfortably;
Application:
Specification:

Display	3.2'' full-color screen
Infrared image Resolution	220*160
Total Pixel	35,200 pixels
Visible image resolution	0.3 megapixels.
Thermal sensitivity	0.07°
Temperature range	-20ºC to 300ºC(-4ºF to 572ºF)
Measuring Accuracy	±2% or ±2ºC(±4ºF)
FOV/Shortest Focal Length	27°×35°/0.5m
Thermal Sensitivity:	0.5ºC
Wavelength Range:	8-14μm
Emissivity	0.1-10.0 Adjustable
Image Frequency	8HZ
Focus Mode	Fixed
Vision Option	full infrared and full vision Visible image with 25% step length
Image Storage	SD card(4G)
File Format	JPG
Battery Supply	built-in chargeable 18650
USB	Micro USB2.0
Auto Power-off Time	5 minutes/20 minutes/ not power off automatically
Authentication	CE, RoHS
Operating Temperature	-5ºC to 40ºC (23ºF to 104ºF)
Storage Temperature	-20ºC to 50ºC (-4ºF to 122ºF)
Relative Humidity	10%RH to 80%RH
Item Size	223×105×90mm
Item Weight	289g
Package Includes	1 x infrared temperature detector 1 x cable 1 x user manual 1 x carry pouch 1 x carry pouch strap 1 x cardboard package box

---
