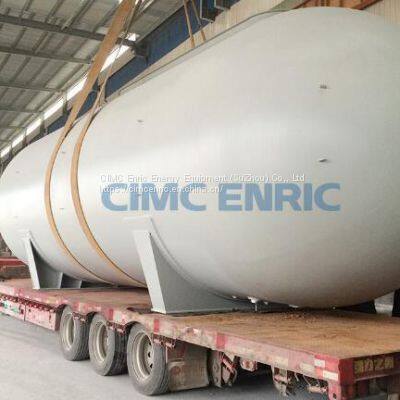

LPG Storage Tank
The LPG storage tank is a normal temperature fixed pressure vessel, a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability.
In order for LPG to liquefy, it must be subjected to specific cooling and pressure conditions, which must also be maintained during storage (and possibly transport) - this requires lpg storage tanks. lpg storage tanks are pressure vessels for storing liquefied petroleum gas (propane) as the main component medium. lpg storage tanks are one of the most efficient ways of storing liquefied LPG, with capacities ranging from 10 (2640gl) to 200 (52800GL) cubic metres. （1,000 gallon and larger tanks - these tanks are used for large residential applications (over 4,500 sq ft) or commercial and industrial applications - also known as CIMC ENRIC production
DESCRIPTION
Shapes
CIMC ENRIC LPG Storage Tank ranges from determining the distance requirements for each tank to determining the right space conditions for storage. You should also consider whether you want to store them vertically or horizontally. Before handling or even distributing LPG storage tanks, you must first obtain approval from the regulatory authorities. They must ensure that the facility where you intend to store the tanks is large enough to accommodate the capacity you need. You must also have a minimum workforce to manage the facility in the event of a fire, on-site fire extinguishers, etc.
There are two basic types of above-ground propane LPG tanks: horizontal tanks and vertical tanks. Horizontal propane tanks (sometimes called "torpedo tanks") are large-capacity containers typically used where propane is the main source of heat in the home. Their increased storage capacity can limit the need for propane delivery in winter, which can help in areas where the weather is unpredictable.
CIMC ENRIC produces LPG storage tanks, mainly horizontal, for large commercial and industrial storage and transport
CIMC ENRIC is a leading company in specialty gas storage and transportation equipment in China and can supply you with the best quality lpg tanks to meet the requirements of each country. We will guide you in your local compliance with storage regulations to ensure maximum product safety.
Specifications
Product specifications
Technical parameters
I. Chinese GB Standard
|
Water Capacity
| Inner Diameter
| Overall Length
| Height
| Weight
| Payload（90% Filling Ratio）
| Thickness
|
Shell
| Heads
|
10m³
| 1600mm
| 5300mm
| 2370mm
| 3400kg
| 4035kg
| 8.53mm
| 8.51mm
|
12m³
| 1600mm
| 6300mm
| 2370mm
| 3800kg
| 4850kg
|
20m³
| 2200mm
| 5680mm
| 2970mm
| 5150kg
| 8070kg
| 11.35mm
| 11.33mm
|
25m³
| 2200mm
| 7000mm
| 2970mm
| 6000kg
| 10090kg
|
32m³
| 2200mm
| 8850mm
| 2970mm
| 7200kg
| 12920kg
|
40m³
| 2470mm
| 8843mm
| 3240mm
| 8780kg
| 16410kg
| 12.62mm
| 12.59mm
|
50m³
| 2470mm
| 10903mm
| 3240mm
| 10420kg
| 20180kg
|
63m³
| 2470mm
| 13623mm
| 3240mm
| 12600kg
| 25420kg
|
80m³
| 3100mm
| 11170mm
| 3800mm
| 16700kg
| 32280kg
| 15.58mm
| 15.87mm
|
100m³
| 3100mm
| 13850mm
| 3800mm
| 20000kg
| 40350kg
|
150m³
| 3400mm
| 17140mm
| 4104mm
| 29800kg
| 60500kg
| 17.35mm
| 17.31mm
|
200m³
| 3800mm
| 18324mm
| 4560mm
| 40100kg
| 80700kg
| 19.27mm
| 19.22mm
|
Main Material
| Q345R
| Design Pressure
| 1.61MPa
|
Hydraulic Test Pressure
| 2.22MPa
| Working Pressure
| ≤1.61MPa
|
Corrosion Allowance
| 1.0mm
| Design Temperature
| -20/50℃
|
Life Expectancy
| 20 years
| Working Temperature
| -20/50℃
|
Notes: Above existing design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
II. ASME Standard
|
Water Capacity
| Inner Diameter
| Overall Length
| Height
| Weight
| Payload（85% Filling Ratio）
| Thickness
|
Shell
| Heads
|
10m³
| 1600mm
| 5308mm
| 2440mm
| 3850kg
| 4630kg
| 11.09mm
| 11.02mm
|
12m³
| 1600mm
| 6308mm
| 2440mm
| 4340kg
| 5560kg
|
20m³
| 2200mm
| 5690mm
| 3050mm
| 6920kg
| 9260kg
| 14.86mm
| 14.78mm
|
25m³
| 2200mm
| 7010mm
| 3050mm
| 8100kg
| 11580kg
|
32m³
| 2200mm
| 8860mm
| 3050mm
| 9750kg
| 14820kg
|
40m³
| 2470mm
| 8851mm
| 3320mm
| 11930kg
| 18530kg
| 16.56mm
| 16.47mm
|
50m³
| 2470mm
| 10911mm
| 3320mm
| 15420kg
| 25470kg
|
60m³
| 2470mm
| 13001mm
| 3320mm
| 16600kg
| 27790kg
|
80m³
| 3100mm
| 11178mm
| 3960mm
| 22820kg
| 37060kg
| 20.53mm
| 20.41mm
|
100m³
| 3100mm
| 13858mm
| 3960mm
| 27430kg
| 46320kg
|
Main Material
| SA-516 Gr.70
| Design Pressure
| 1.724MPa
|
Hydraulic Test Pressure
| 2.25MPa
| Working Pressure
| ≤1.724MPa
|
Corrosion Allowance
| 1.0mm
| Design Temperature
| 50℃
|
Specific Gravity
| 0.545@15℃
| Working Temperature
| -20/50℃
|
Notes: Above existing design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
>>
