Cargo Elevator Hoistfor Man and Material Rack & Pinion Material Hoist

Cargo Elevator Hoistfor Man and Material Rack & Pinion Material Hoist

US$60,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SC200H

Speed

23 M/Min

Drive Mode

Rack & Pinion

Open & Close Type

Manual

Lift Mechanism

Lift Chain

Deceleration Device

With Deceleration Device

Guide Rail

Rack & Pinion

Elevator Door

Sider Door

Door Knife

Single

Attendant

Without Attendant

Persons

12-24

Capacity

2000kg

Mast Section

650 X 650 X 1508mm

Power Source

Electric

Transport Package

Export Packing

Specification

CE

Trademark

ANKA

Origin

China

HS Code

8428

Production Capacity

300

Product Description

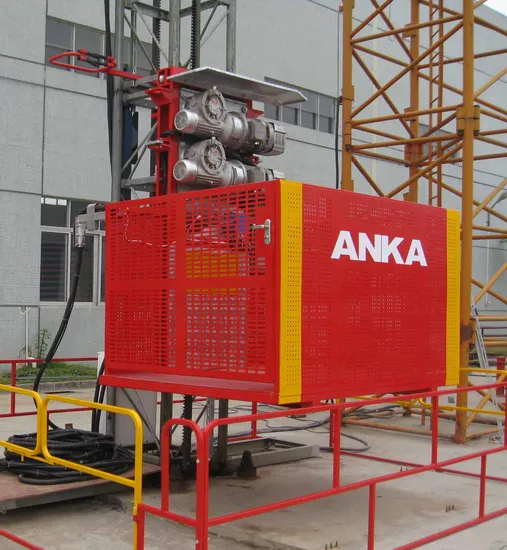

SC200H cargo elevator
Capacity: 2000kg
Speed: 23 m/min
Max height: 120m
With rack and pinion
Specifications for Passenger and material hoist:

ANKA HOIST	Model	Capacity (kg)	Lifting speed (m/min)	Driven system	Cabin dimension (L WH) (m)	Mast section dimension (mm)
SINGLE CAGE	SC100TD	1000	36	Motor directly	3.2 * 1.5 * 2.2	6506501508
	SC100GD	1000	0 - 40	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC200TD	2000	36	Motor directly	3.2 * 1.5 * 2.2	6506501508
	SC200GD	2000	0-40	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC200GZ	2000	0-63	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC270GZ	2700	0-63	Frequency control	3.2 * 1.5 * 2.2	6506501508
DOUBLE CAGE	SC100/100TD	2 X 1000	36	Motor directly	3.2 * 1.5 * 2.2	6506501508
	SC100/100GD	2 X 1000	0-40	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC200/200TD	2 X 2000	36	Motor directly	3.2 * 1.5 * 2.2	6506501508
	SC200/200GD	2 X 2000	0-40	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC200/200GZ	2 X 2000	0-63	Frequency control	3.2 * 1.5 * 2.2	6506501508
	SC270/270GZ	2 X 2700	0- 63	Frequency control	3.2 * 1.5 * 2.2
