US$6,000.00-7,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Tools, Shopping, Industrial, Storage
Wheel Type
Pneumatic Wheel
Engine
Honda Gx390 13GP Gasoline
Operation Weight Kgs(Lbs)
800(1762)
Max Travel Speed Km/H(Mph)
0-4.8(0-3.0)
Skip Tipping System
Hydraulic
Standard Track Width
180(7.1)
Certification
ISO, CE, GS, TUV, RoHS, FCC
After-sales Service
Online Service
Production Capacity
500units/Month
Packaging & Delivery
Package Size
2280.00cm * 920.00cm * 1400.00cm
Package Gross Weight
650.000kg
Product Description

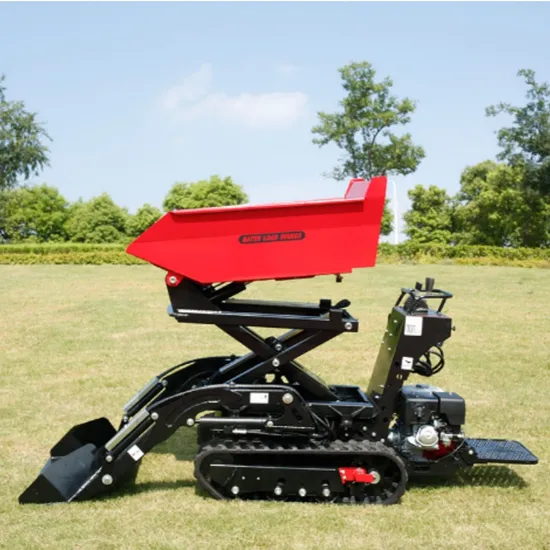

800kgs 4WD Gasoline Engine Mini Dumper With Crawler Drive And Hydraulic For Site Works
Specifications:
| Specification |
| Engine | B&S 13HP or HONDA GX390 13HP or Diesel Engine |
| Weight | 650KG |
| Transmission system | Hydraulic system |
| Type: Hydrostatic | Hydraulic Pump: Piston Pump |
| Hydraulic Motors: 2x orbital | Max Pressure: 150bar(2180psi) |
| Brake Parking: Mechanical | Main Valve: 2-3way |
| Cooler system oil: air | Skip Tipping System: Hydraulic |
| Loading Capacity | 800kg ,lifting for 800kg |
| Lifting Height | 1M |
| Standard Track Width | 180mm(7.1in) |
| Track roller | 3 |
| Rockling rollers and track tensioning | Yes |
| Max Travel Speed | 5.0 km/h |
| Dimension | 228*92*120(retort stand) |
| SELF LOADING SHOVEL | No |
| HI-TIP | No |
Description:
1. The max loading weight is 800kgs .
2. With B&S 13HP or HONDA GX390 13HP or Diesel Engine
3. Hydraulic Transmission case
4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.
5. This model is hydraulic design and 1M Lifting height.
Applications:
Dumpers are widely used in many different of site works, such as Building construction industry, landscaping,gardening,farming,stables renting and so on.
Competitive Advantage:
1 . Easy and comfortable operation due to the intuitive controls.
2 . Self loading shovel not only can be used as a small excavator but also keep the
balance of the machine during unloading.
3 . Easy climbing and stable crossing the obstacles.
4 . Spot turning, mini slipping.
>>
