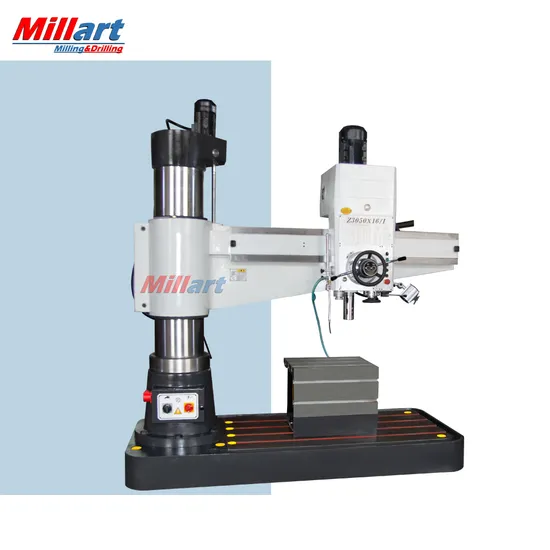

Heavy Duty Hydraulic Clamping Pre-Selection Radial Driling Machine Z3040*16-1, Hydraulic Clamping Z3040 Cheap Radial Drilling Machine

Product Description

Product Description
Technical parameter :
Feature :
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.
Technical parameter :

Model	Z3040×16/1
Max.drilling dia (mm)	40
Distance from spindle nose to base (mm)	350-1250
Distance from spindle axis to column (mm)	350-1600
Column diameter (mm)	350
Spindle travel (mm)	315
Spindle taper	MT4
Spindle speeds range(r.p.m)	25-2000
Spindle speed step	16
Spindle feeding rate(mm/min)	0.04-3.2
Spindle feeding step	16
Worktable dimensions (mm)	630x500x500
Base dimensions (mm)	2400x1000x200
Rocker rotary angle	360 degree
Main motor power (kw)	3
Lifting motor power (kw)	1.1
Weight (kg)	3400
Overall dimensions (cm)	260×112×260

Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
