High Precision Heavy Duty Metal CNC Horizontal Machining Center Hmc-125 High Quality Specification Horizontal CNC Milling Machine

Product Description

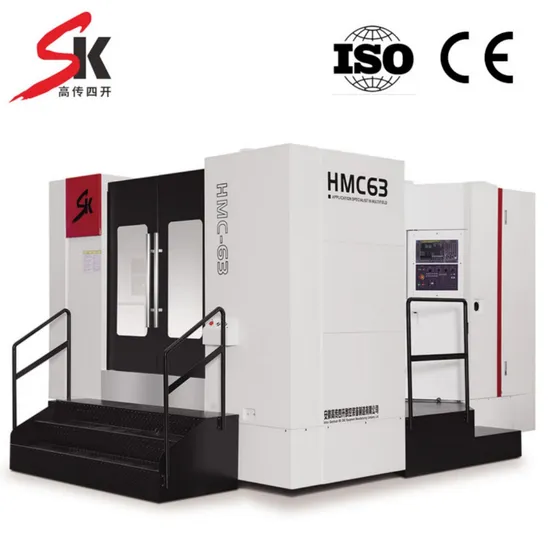

Horizontal CNC Machining Centre
1.1 DESCRIPTION
1.2 FEATURE

Classic column moving structure, the overall base is rigid enough, oil-water separation structure. The side layout of the manipulator tool magazine is isolated and protected, and the tool change is fast and reliable. The X-direction guide cover has a large inclination angle, double-sided spiral + chain rear chip removal, and the chip removal is smoother. Three-axis heavy-duty roller linear guide, good acceleration performance, suitable for high-efficiency processing. Spindle configuration with high rigidity, wide-area high-torque spindle motor, strong re-cutting capability. Full-featured, flexible configuration, convenient expansion, to meet different customer requirements. Fully servo-driven dual-pallet exchange device, the movement is smoother and more stable.
1.3 PARAMETERS

Specification	Unit	HMC50	HMC63	HMC80	HMC100	HMC125
X/Y/Z axis	mm	660/580/620	1050/750/900	1300/1000/1000	1600/1000/1400	2000x1300x1400
Distance from spindle end to workbench centre	mm	130-750	150-1050	200-1200	250-1650	350-1750
Distance from spindle centre to workbench surface	mm	100-680	100-850	120-1120	120-1120	120-1420
Workbench size(L*W)	mm	500x500	630×630	800x800	1000x1000	1250x1250
Max. workbench load	Kg	700	1200	2000	2200	3500
Workbench divisions	mm	1°/0.001°	1°/0.001°	1°/0.001°	1°/0.001°	1°/0.001°
Max. workpiece turning diameter on workbench	mm	800	1400	2000	2200	2600
T-slot(number - width -spacing)	Mm	5-18-100	5-22-125	5-22-160	5-22-200	7-22-160
Spindle tapered bore (type / installed size)	mm	BT40	BT50	BT50	BT50	BT50
Spindle speed	rpm	8000	6000	6000	6000	60000
X/Y/Z axis rapid feed	m/min	34/34/34	30/30/30	24/24/24	24/24/24	18/18/18
Maximum cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Knife arm type	Knife arm type	Knife arm type	Knife arm type	Knife arm type
Toolholder specifications	type	BT40	BT50	BT50	BT50	BT50
Tool capacity	tools	24 Disc-type	30 Disc-type	30 Disc-type	30 Disc-type	30 Disc-type
Max tool length	-	Φ80	Φ115	Φ115	Φ115	Φ115
Max tool dia	mm	300	350	350	350	350
Max. tool weight	kg	8	18	18	18	18
Fastest tool change time (T-T)	sec	2.5	5	5	5	5
Spindle motor	kw	11/15	15/18.5	15/18.5	15/18.5	15/18.5
XYZ Positioning accuracy	mm	0.008	0.008	0.008	0.01/0.01/0.008	0.012/0.08/0.08
XYZ Repositioning accuracy	mm	0.005	0.005	0.005	0.008/0.008/0.005	0.006/0.005/0.005
Worktable Positioning accuracy 1°/0.001°	mm	5"(8")	5"(8")	5"(8")	5"(8")	5"(8")
Worktable Repositioning accuracy 1°/0.001°	mm	3"(5")	3"(5")	3"(5")	3"(5")	3"(5")
Machine size:L*W*H	mm	2600x3300x2600	3400/5300×2900	4500x6000×4000	4900x6500x4000	6000x7000x4500
Machine.Weight approx.	t	8	12.5	16.5	20	27

1.4 STANDARD ACCESSORIES

1	30 tool magazines	6	Tri-color warning light	11	Rigid tapping	16	Portable chip blowing air gun
2	Workpiece Cooling System Spindle cooling	7	Machine cleaning water gun	12	Fully enclosed protective cover	17	Large flow chip flushing device
3	Automatic lubrication system	8	Spindle output water	13	Foundation screws and pads	18	Spindle nose labyrinth dust blower
4	Spindle air curtain dustproof system	9	Electric cabinet heat exchanger	14	Tools and Toolboxes	19	Oil filter
5	Working light	10	Network transmission and CF card function	15	Double helix cutter and chain plate cutter	20	Transformer

After Sales Service
2. SERVICE
2.1TRAINING AND INSTALLATION
2.2 AFTER SALES 1. From the BL date, the manufacturer will implement the "three guarantees" service for the product for one year (if the user causes damage due to his own reasons, an appropriate cost fee will be charged)
2.When the machine tool breaks down, the manufacturer can accurately judge the cause of the failure and deal with it immediately after receiving the feedback information from the user; if the cause cannot be determined at that time, a reply will be given within 24hours
2.3 Package
3.Company strength
3.1 General situation
Anhui Gaochuan Sikai CNC Equipment Manufacturing Co, Ltd. (formerly Nanjing Sikai)/NanJing Newsiv Equipment Co.,Ltd was founded in 1993 and relocated to Ma'anshan, Anhui In 2021.
It is a high-tech enterprise specializing in the design and manufacturing of CNC machine tools. The company's main products have compteteiy independent intellectual property rights, and multiple series of products have obtained Jiangsu Province High tech Product Certificates.
FAQ

FAQ
1	Is your company a factory or trading company ? We are factory .It is located in JiangSu Province.
2	Can we visit your factory before order? Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
3	What's the MOQ ? One set only.
4	Do you have professional engineers ? Yes.we have professional engineers and designers. We can provide OEM services.
5	Do you have CE certificate? Yes , we have CE certification, machine quality is guaranteed.
6	What is your payment terms ? 30% T/T in advance , 70% T/T before shipment, Meanwhile it can be discussed according to your situation.
7	What is your delivery time ? Our fastest delivery time for 1~5 sets will be within one month for standard model. Special model will depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
8	How is the warranty? We will supply standard ports and accessories with our machine . Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
