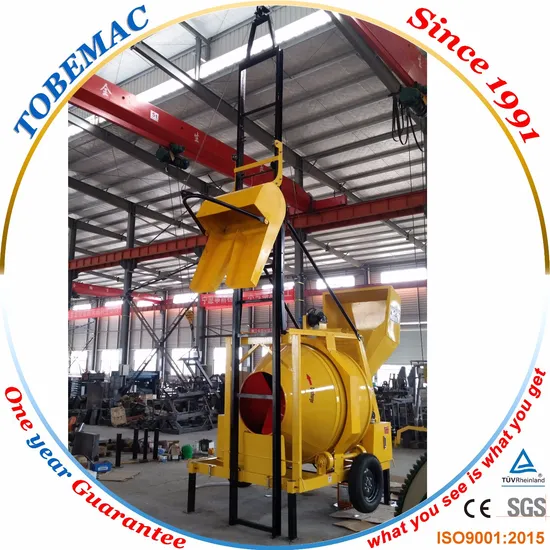

Jzc350DHL Self Loading Concrete Mixer with Lift

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company. 2.Products Specification:

Model	JZC350-DHL
Discharging Capacity	350 L
Loading Capacity	560 L
Productivity	10-14 m3/h
Bags of Cement per Batch	2 Bags Cement
Drum Thickness	6 mm
Drum Size	Φ1460×1850 mm
Engine Option	Water-cooled Diesel Engine (Customer Can choose the following brand engine on this mixer) Brand 1:CHANGCHAI Brand S1100 (16HP) Brand 2:CHANGFA Brand S1100 (16HP) Brand 3:JIANGDONG Brand S1100(16HP)
Displacement of Hydraulic Pump	25 mL/r
Drum Rotation Speed	14RPM
Max. Size of Aggregate	60 mm
Tyre Size	6.50-16
Total Weight	2400 kg
Overall Size (L×W×H)	3150×2200×3200 mm
Packing Size (L×W×H)	2200×2000×2500mm
Container Loading Plan	2 Sets Per 20GP, 5Sets Per 40 HQ

3.Product Application
JZC350-DH Concrete Mixer with Diesel Engine Power and Hydraulic Tipping Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The JZC350-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Chassis- mounted Big Water Tank
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod
4) Hydraulic Tank with Large Volume
5) Japanese Brand YANMAR Powerful Diesel Engine
6) Middle Situated and Bolt Connected Design of Grand Gear Ring.
5.Production Flow
6.Packaging&Delivery

	Size	2300 (L) * 2000 (W) * 2500(D) mm
	Weight	1700 kg
	Packaging Details	The normal package is by big PLASTIC BAG . 2 Sets Per 20GP, 6 Sets Per 40HQ

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
