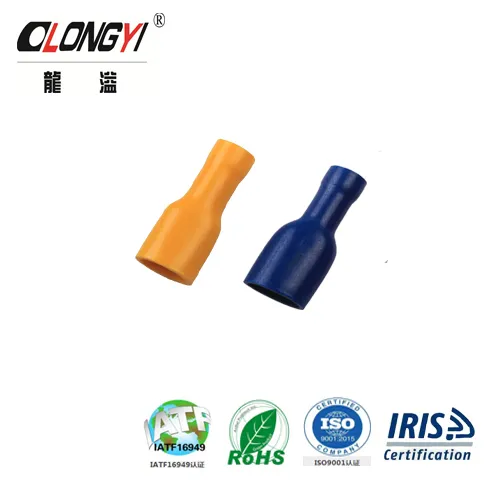

Insulated Female Wire Connector Fdfd

Product Description

Insulated male/female terminals
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.
3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
The company has more than 95% of the full automatic production lines, nissan 200 tons, production capacity continues to adjust and expand, to meet the challenge of the market at any time.
Through the European CE safety certification, American UL safety certification, the company has a SC Japan JIS standard, the German DIN standards, AWG American standards, etc.
Companies always adhere to: quality first, service first, from raw materials into the factory inspection, process inspection to every working procedure, outbound packaging cengcengbaguan .
Company has own copper pipe, copper strip, copper platoon of raw material processing factory, with strong competitive advantage price on equal quality to every guest get the maximum benefits.

PART NO	ITEM NO	DIMENSIONS
		W	L	t	ID	OD	B
LY0025-0001	RF110-5	3.2	18.5	0.3	1.8	3.8	10.0
LY0025-0002	RF110-8	3.2	18.5	0.3	1.8	3.8	10.0
LY0025-0003	RF187-5	5	19.0	0.4	1.8	3.8	10.0
LY0025-0004	RF187-8	5	19.0	0.4	1.8	3.8	10.0
LY0025-0005	RF250	6.6	20.3	0.4	1.8	3.8	10.0
LY0025-0006	BF110-5	3.2	18.5	0.3	2.4	4.2	10.0
LY0025-0007	BF110-8	3.2	18.5	0.3	2.4	4.2	10.0
LY0025-0008	BF187-5	5.0	19.0	0.4	2.4	4.2	10.0
LY0025-0009	BF187-8	5.0	19.0	0.4	2.4	4.2	10.0
LY0025-0010	BF250	6.6	20.3	0.4	2.4	4.2	10.0
LY0025-0011	YF110-5	3.2	22.0	0.4	3.5	5.4	13.0
LY0025-0012	YF110-8	3.2	22.0	0.4	3.5	5.4	13.0
LY0025-0013	YF187-5	5.0	22.0	0.4	3.5	5.4	13.0
LY0025-0014	YF187-8	5.0	22.0	0.4	3.5	5.4	13.0
LY0025-0015	YF250	6.6	23.3	0.4	3.5	5.4	13.0

---
